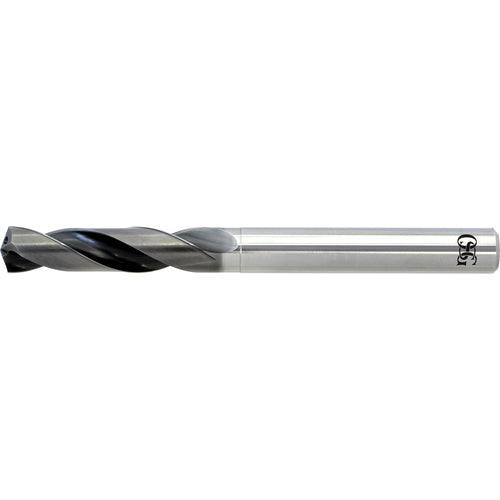

14.5 mm Dia. × 16 mm Shank × 73 mm Flute Length × 140 mm OAL, 3xD, WXL, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: TP348681450
Brand: OSG USA, Inc.
Model #: 8681450
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 14.5 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.5 mm |
| Tool Type | Stub Drill |
| Length Group | 3xD |
| Measurement Type | Metric |
| Coating | WXL |
| Series/List # | 5200 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials | Hard Materials |
| Usable Length (LU) | 73 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Length Chip Flute (LCF) | 73 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 140 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 73 mm |
| Cutting Direction (HAND) | Right Hand |
