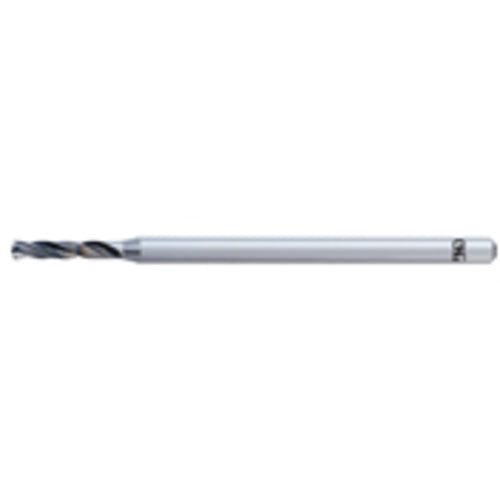

0.7 mm Dia. × 3 mm Shank × 4.2 mm Flute Length × 47 mm OAL, 2xD, IchAda, 2 Flute, No, Solid Carbide Drill
Item #: TP348732001
Brand: OSG USA, Inc.
Model #: 8732001
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.7 mm |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.7 mm |
| Tool Type | Stub Drill |
| Length Group | 2xD |
| Measurement Type | Metric |
| Coating | IchAda |
| Series/List # | 6501 |
| Applicable Material | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Usable Length (LU) | 4.2 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Length Chip Flute (LCF) | 4.2 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 47 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 4.2 mm |
| Cutting Direction (HAND) | Right Hand |
