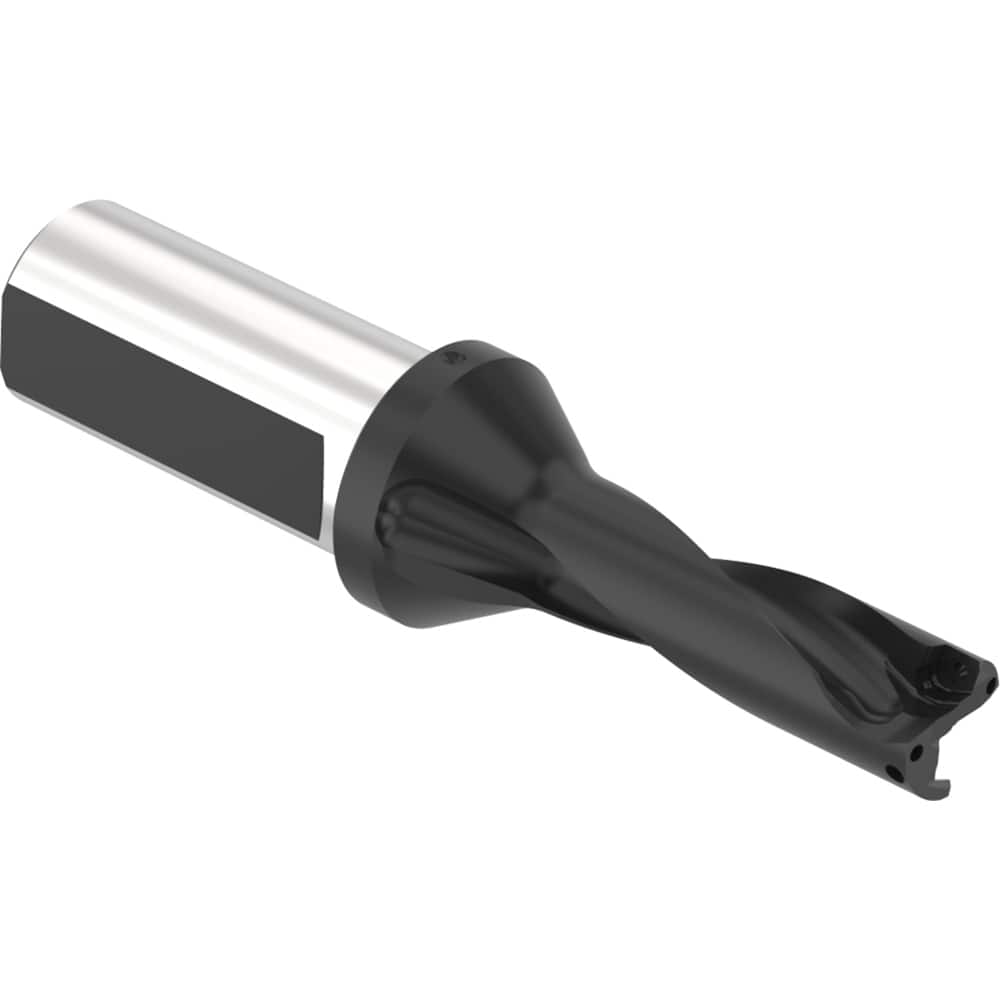

Allied Machine and Engineering - Indexable Insert Drills Drill Style: D305 Drill Diameter (Inch): 23/32
Item #: 18419259
Brand: Allied Machine and Engineering
Model #: D3050718I-100F
Product Specifications
Indexable Insert Drills; Drill Style: D305 ; Drill Diameter (Inch): 23/32 ; Drill Diameter (Decimal Inch): 0.7180 ; Maximum Drill Depth (Decimal Inch): 2.1540 ; Shank Type: Flanged ; Shank Diameter (Inch): 1.000
| Drill Style | D305 |
| Drill Diameter (Inch) | 23/32 |
| Drill Diameter (Decimal Inch) | 0.7180 |
| Maximum Drill Depth (Decimal Inch) | 2.1540 |
| Shank Type | Flanged |
| Shank Diameter (Inch) | 1.000 |
| Through Coolant | Yes |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 5.1770 |
| Body Length (Decimal Inch) | 5.1770 |
| Series | 05 |
