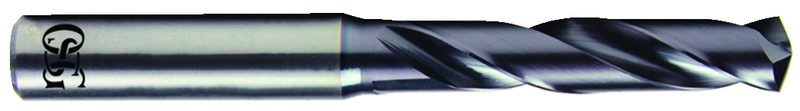

13/32 Carbide 3xD HY-PRO® CARB Drill
Item #: TP45HP2434063
Manufacturer: OSG USA, Inc.
Mfg #: HP243-4063
Technical Specifications:
•Angle: 140° •Brand Name: OSG USA, Inc. •Coating: TiAlN •Decimal Equivalent: .4063 •Drill Diameter: 13/32 •Flute Length: 55mm •Flute Length x Diameter Ratio: 3xD •Helix Angle: 30 Degree •List No.: HP243 •Material: Carbide •Max Drilling Depth: 55mm •Model Number: HP243-4063 •Number of Flutes: 2 •Overall Length: 102mm •Shank Size: 12mm •Trade Name: HY-PRO® CARB •Type: High Performance Drill
Description:
•TiAlN coating •3xD length •High performance carbide •Recommended for cast iron, carbon steels, alloy steels, and hardened steels up to 35 HrC •OSG List #HP243
Shipping Info:
•Actual Weight - .2850 •Dimensions - Height: .600 Length: 4.00 Width: .700
