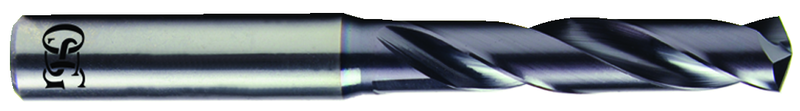

5/8 Carbide 3xD HY-PRO® CARB Drill
Item #: TP45HP2436248
Manufacturer: OSG USA, Inc.
Mfg #: HP243-6248
Technical Specifications:
•Angle: 140° •Brand Name: OSG USA, Inc. •Coating: TiAlN •Decimal Equivalent: .6248 •Drill Diameter: 5/8 •Flute Length: 65mm •Flute Length x Diameter Ratio: 3xD •Helix Angle: 30 Degree •List No.: HP243 •Material: Carbide •Max Drilling Depth: 65mm •Model Number: HP243-6248 •Number of Flutes: 2 •Overall Length: 115mm •Shank Size: 16mm •Trade Name: HY-PRO® CARB •Type: High Performance Drill
Description:
•TiAlN coating •3xD length •High performance carbide •Recommended for cast iron, carbon steels, alloy steels, and hardened steels up to 35 HrC •OSG List #HP243
Shipping Info:
•Actual Weight - .5900 •Dimensions - Height: .850 Length: 4.55 Width: .900
