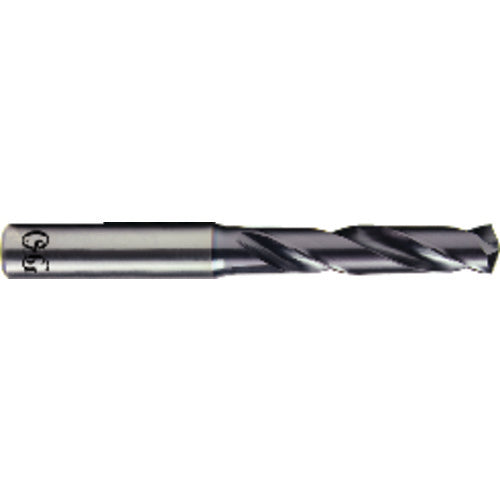

1/2″ Dia. × 14 mm Shank × 60 mm Flute Length × 107 mm OAL, 3xD, 140°, TiAlN, 3 Flute, Coolant Thru, Round Solid Carbide Drill
Item #: TP45HP2535000
Brand: OSG USA, Inc.
Model #: HP253-5000
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/2″ |
| Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/2″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ |
| Tool Type | Solid Carbide |
| Length Group | 3xD |
| Measurement Type | Inch |
| Coating | EgiAs |
| Series/List # | HP253 |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials |
| Usable Length (LU) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Length Chip Flute (LCF) | 60 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 107 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 3 |
| Functional Length (LF) | 60 mm |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
