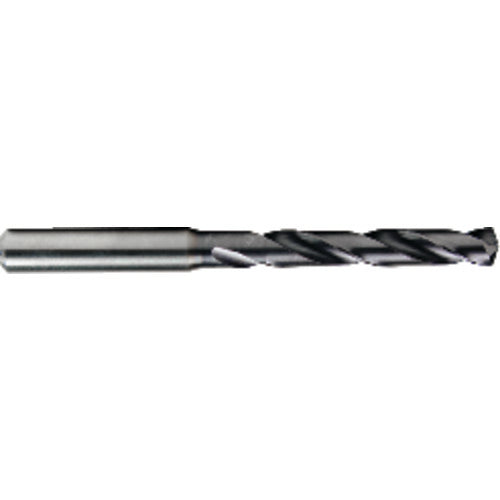

19/32″ Dia. × 11/32″ Shank × 83 mm Flute Length × 133 mm OAL, 5xD, TiAlN, 2xD Flute, H6 Solid Carbide Drill
Item #: TP45HP2555937
Brand: OSG USA, Inc.
Model #: HP255-5937
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 19/32″ |
| Shank Type | H6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 19/32″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5938″ |
| Tool Type | Solid Carbide |
| Length Group | 5xD |
| Measurement Type | Inch |
| Coating | EgiAs |
| Series/List # | HP255 |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials |
| Usable Length (LU) | 83 mm |
| Connection Diameter Machine Side (DCONMS) | 11/32″ |
| Length Chip Flute (LCF) | 83 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 133 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 83 mm |
| Cutting Direction (HAND) | Right Hand |
