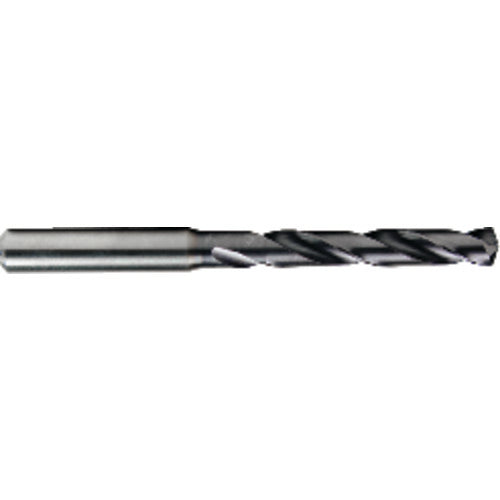

5/8″ Dia. × 16 mm Shank × 83 mm Flute Length × 133 mm OAL, 5xD, 140°, TiAlN, 3 Flute, Coolant Thru, Round Solid Carbide Drill
Item #: TP45HP2556248
Brand: OSG USA, Inc.
Model #: HP255-6248
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5/8″ |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/8″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.625″ |
| Tool Type | Solid Carbide |
| Length Group | 5xD |
| Measurement Type | Inch |
| Coating | EgiAs |
| Series/List # | HP255 |
| Applicable Material | Steel | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | Hard Materials |
| Usable Length (LU) | 83 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Length Chip Flute (LCF) | 83 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 133 mm |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 3 |
| Functional Length (LF) | 83 mm |
| Cutting Direction (HAND) | Right Hand |
