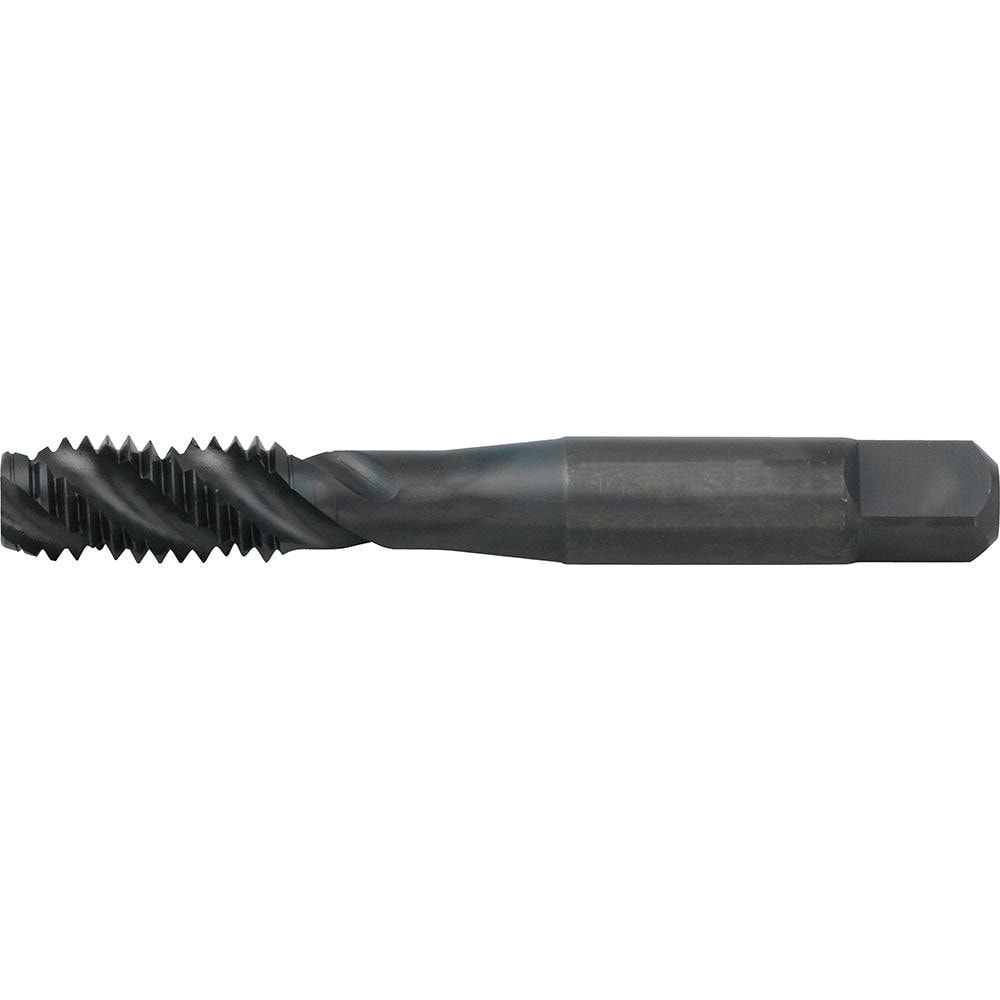

Brand: Widia / Part #: 5390262
Item #: 97561468
Brand: Widia
Model #: 5390262
Product Specifications
| Thread Size (Inch) | 9/16-18 |
| Chamfer | Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 18 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 3.5900 |
| Thread Depth (Decimal Inch) | 1.7400 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Square Size (Decimal Inch) | 0.3190 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
