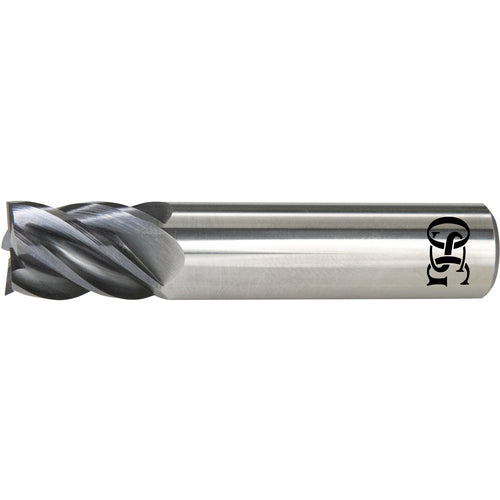

VGM5-LN-07500CR0.09-SS - 3/4″ Dia. × 3/4″ Shank × 2-1/4″ DOC × 4″ OAL, Carbide, EXO, 5 Flute, 0.09″ Corner Radius, End Mill
Item #: TP45VGM51163
Brand: OSG USA, Inc.
Model #: VGM5-1163
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Tool Type | End Mill |
| Overall Length (OAL) | 4″ |
| Decimal Equivalent | 0.75″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | EXO |
| Series/List # | VGM5-LN |
| Flute Count (NOF) | 5 |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.09″ |
| Shank Type | Shrink Fit |
