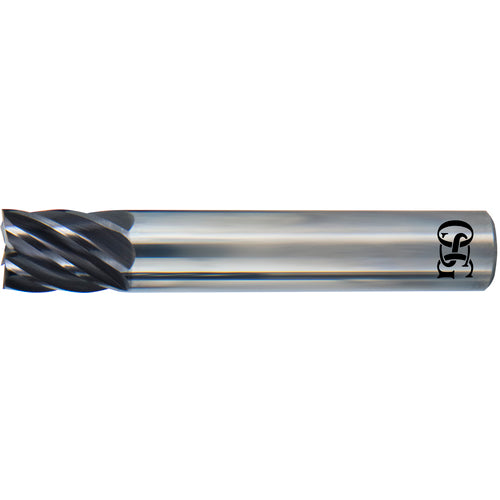

VGM7-03125CR0.02-R - 5/16″ Dia. × 5/16″ Shank × 15/16″ DOC × 3″ OAL, Carbide, EXO, 7 Flute, 0.02″ Corner Radius, End Mill
Item #: TP45VGM70034
Brand: OSG USA, Inc.
Model #: VGM7-0034
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 15/16″ |
| Tool Type | End Mill |
| Overall Length (OAL) | 3″ |
| Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | EXO |
| Series/List # | VGM7 |
| Flute Count (NOF) | 7 |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Shank Type | Shrink Fit |
