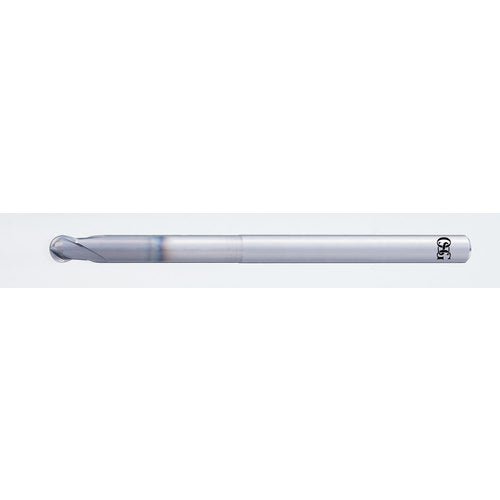

3 mm Dia. × 6 mm Shank × 2.4 mm DOC × 50 mm OAL, Carbide DURO, 2 Flute, Shrink Fit, Ballnose End Mill
Item #: TP463056305
Brand: OSG USA, Inc.
Model #: 3056305
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Corner Radius (RE) | 1.5 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 2.85 mm |
| Depth of Cut Maximum (APMX) | 2.4 mm |
| Neck Length (LN) | 8 mm |
| Overall Length (OAL) | 50 mm |
| Tool Type | Center Cut |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | DURO |
| Shank Standard | h6 |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Shank Type | Shrink Fit |
| Series/List # | 8590 |
