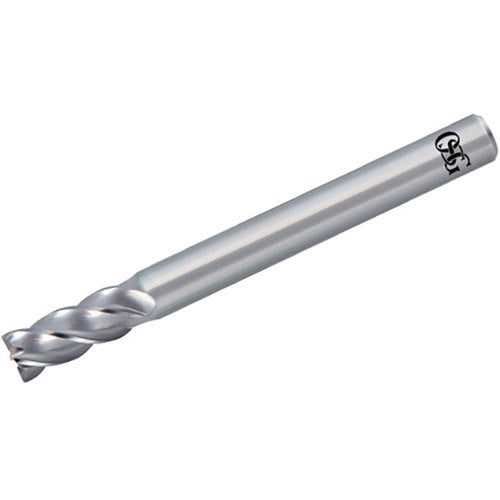

5/16″ Dia. × 5/16″ Shank × 13/16″ DOC × 2-1/2″ OAL, Carbide, Duarise, 4 Flute, Shrink Fit, Square, Solid End Mill
Item #: TP4682000421
Brand: OSG USA, Inc.
Model #: 82000421
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/16″ |
| Shank Type | Shrink Fit |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 13/16″ |
| Tool Type | High Performance |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Duarise |
| Series/List # | 8200 |
| Flute Count (NOF) | 4 |
| Shank Length (LS) | Regular |
