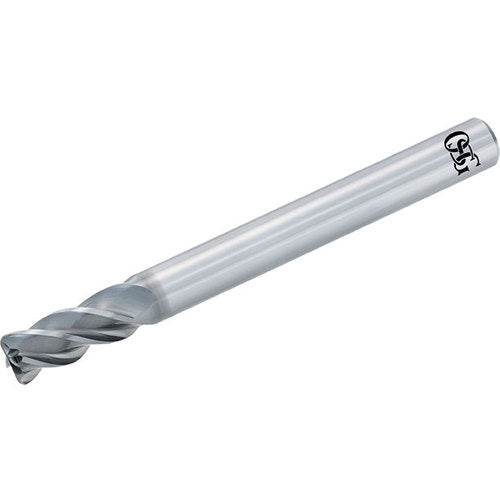

3/16″ Dia. × 3/16″ Shank × 7/16″ DOC × 2″ OAL, Carbide, Duarise, 4 Flute, Shrink Fit, Corner Radius, Solid End Mill
Item #: TP4682100021
Brand: OSG USA, Inc.
Model #: 82100021
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 7/16″ |
| Tool Type | High Performance |
| Overall Length (OAL) | 2″ |
| Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Duarise |
| Series/List # | 8210 |
| Flute Count (NOF) | 4 |
| Shank Length (LS) | Regular |
| Shank Type | Shrink Fit |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
