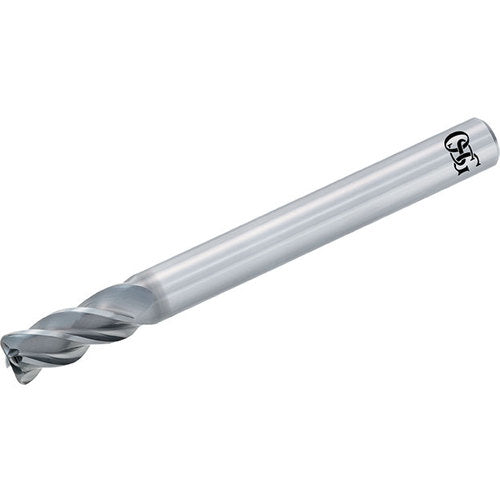

3/4″ Dia. × 3/4″ Shank × 7/8″ DOC × 3-1/2″ OAL, Carbide, Duarise, 4 Flute, Shrink Fit, Corner Radius, Solid End Mill
Item #: TP4682108421
Brand: OSG USA, Inc.
Model #: 82108421
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Tool Type | High Performance |
| Overall Length (OAL) | 3-1/2″ |
| Decimal Equivalent | 0.75″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Duarise |
| Series/List # | 8210 |
| Flute Count (NOF) | 4 |
| Shank Length (LS) | Stub |
| Shank Type | Shrink Fit |
| Corner Radius (RE) / Chamfer Width (CHW) | 1/8″ |
