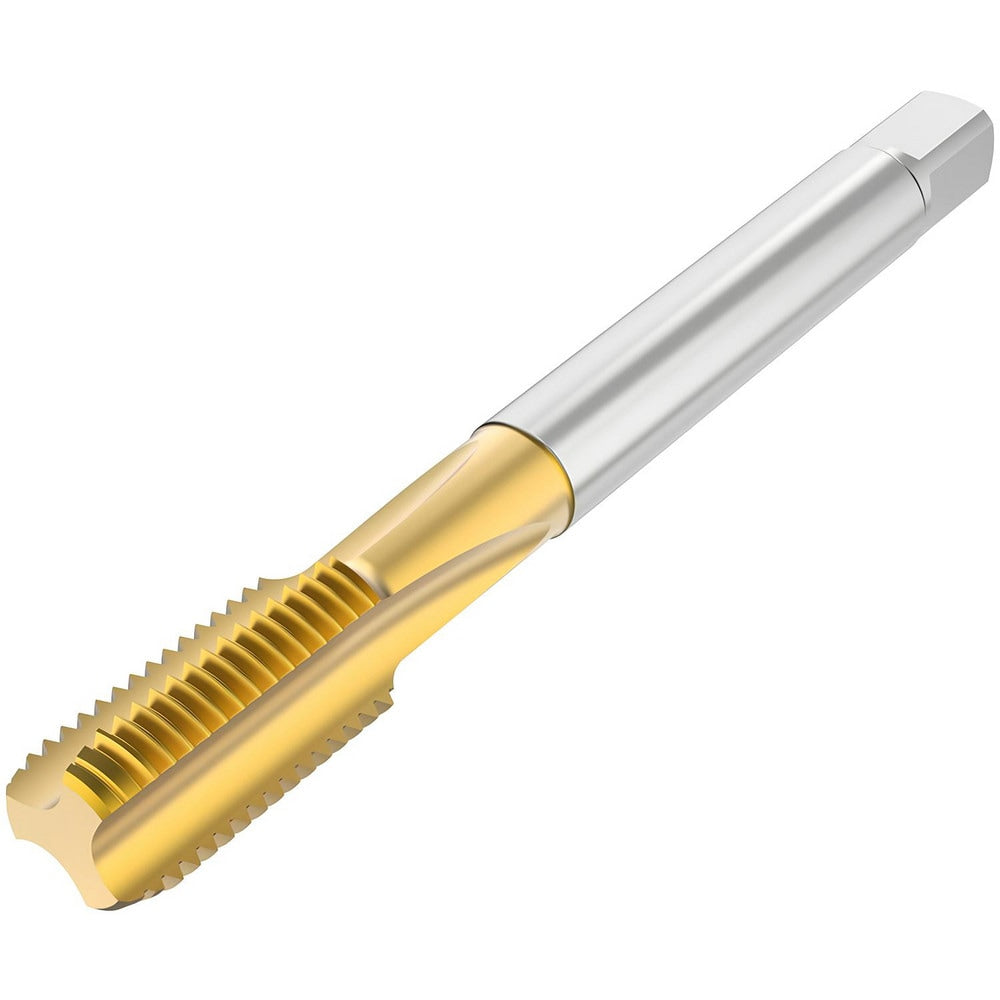

Brand: Seco / Part #: 10139723
Item #: 99767725
Brand: Seco
Model #: 10139723
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | MF12x1 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Chamfer | Semi-Bottoming |
| Material | HSS-E |
| Coating/Finish | TN |
| Threads per Inch | 25 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric Fine |
| Overall Length (mm) | 100.0000 |
| Thread Pitch (mm) | 1.00 |
| Thread Length (mm) | 20.00 |
| Thread Depth (mm) | 20.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 9.0000 |
| Tapping Depth (mm) | 73.00 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | T32 |
| Neck Length | 53.00 |
| Shank Length (mm) | 27.000 |
