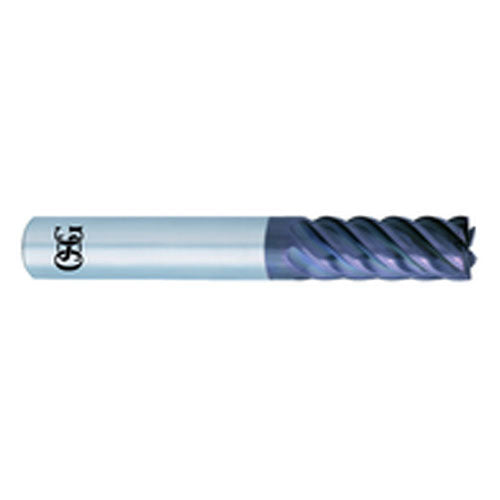

1/8″ Dia. × 1/4″ Shank × 3/8″ DOC × 2-1/2″ OAL, Carbide, WXS, 4 Flute, Round, Square, Solid End Mill
Item #: TP4884400423
Brand: OSG USA, Inc.
Model #: 84400423
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 3/8″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Tool Type | High Performance |
| Overall Length (OAL) | 2-1/2″ |
| Style | Square |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ |
| Coating | WXS |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Series/List # | 4440 |
| Shank Type | Round |
