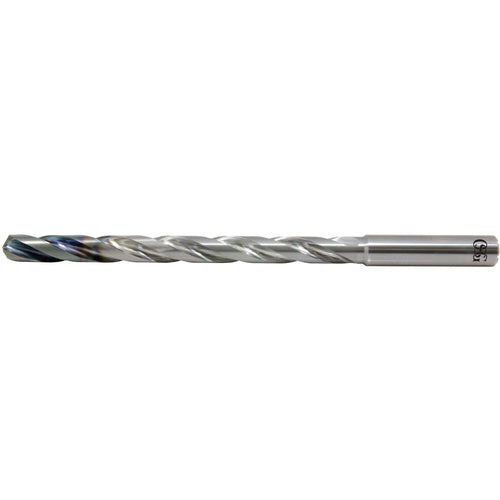

563020411 5.2MM EXOPRO TR
Item #: TP51563020411
Brand: OSG USA, Inc.
Model #: 563020411
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5.2 mm |
| Functional Length (LF) | 70 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.2 mm |
| Tool Type | Taper Drill |
| Length Group | Taper |
| Measurement Type | Metric |
| Coating | WD1 |
| Usable Length (LU) | 70 mm |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Length Chip Flute (LCF) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Overall Length (OAL) | 128 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 3 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
