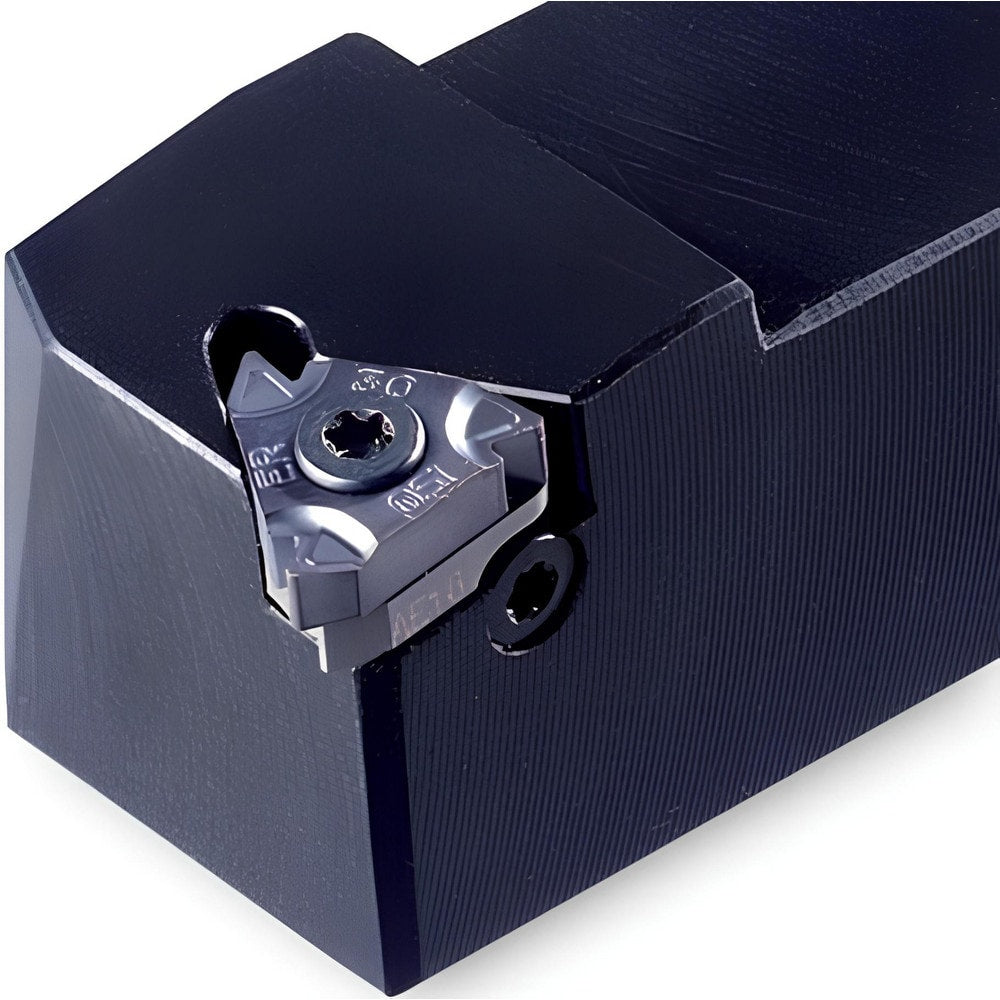

Brand: Ingersoll Cutting Tools / Part #: 3820053
Item #: 67286377
Brand: Ingersoll Cutting Tools
Model #: 3820053
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | 22 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Toolholder Style | SER |
| Insert Compatibility | 22ER |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Length (Inch) | 7 |
| Shank Length (Decimal Inch) | 7.0000 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Series | SER |
| Multi-use Tool | Yes |
| Cutting Tool Application | Threading |
| Head Length (Inch) | 1-1/4 |
| Head Length (Decimal Inch) | 1.2500 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Steel |
| Head Width (Inch) | 1-1/4 |
| Style | SER |
| D -In-- | 1.2500 |
| Coolant Through | No |
