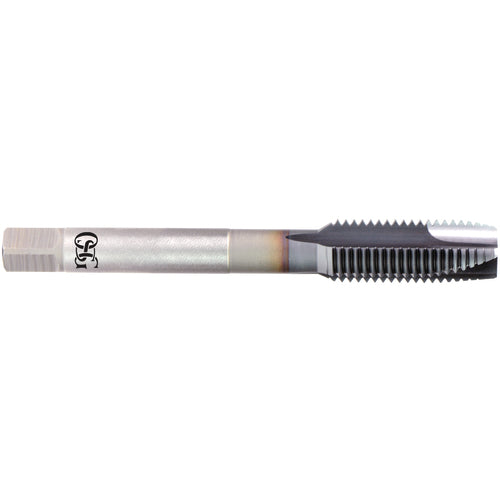

10-32 H2 3FL SP PT PLUG A TAP TICN
Item #: TP531651501308
Brand: OSG USA, Inc.
Model #: 1651501308
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | VC10 |
| Thread Size | #10 - 32 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #10 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H2 |
| Thread Cutting Part Length (THL) | 0.492″ |
| Usable Length (LU) | 0.976″ |
| End Shape | Spiral Point |
| Overall Length (OAL) | 2.75″ |
| Style | Plug |
| Chamfer | 3.5P-4.5P |
| Measurement Type | Wire Gauge |
| Coating | V Coating |
| Series/List # | 16515 |
| Flute Count (NOF) | 3 |
