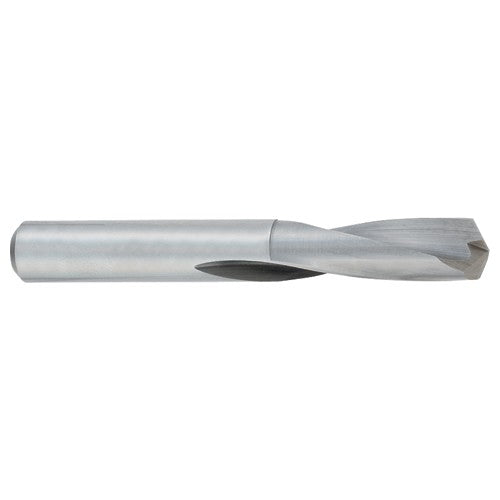

3/64″ Dia. × 3/64″ Shank × 1/2″ Flute Length × 1-1/2″ OAL, Bright, Solid Carbide Drill
Item #: TP602150469
Brand: OSG USA, Inc.
Model #: 215-0469
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/64″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/64″ |
| Tool Type | Jobber Drill |
| Decimal Equivalent | 0.0469″ |
| Flute Type | Slow Spiral |
| Length Group | Jobber |
| Measurement Type | Inch |
| Coating | Bright |
| Series/List # | 215 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 3/64″ |
| Length Chip Flute (LCF) | 1/2″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1-1/2″ |
| Point Angle (SIG) | 135 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
