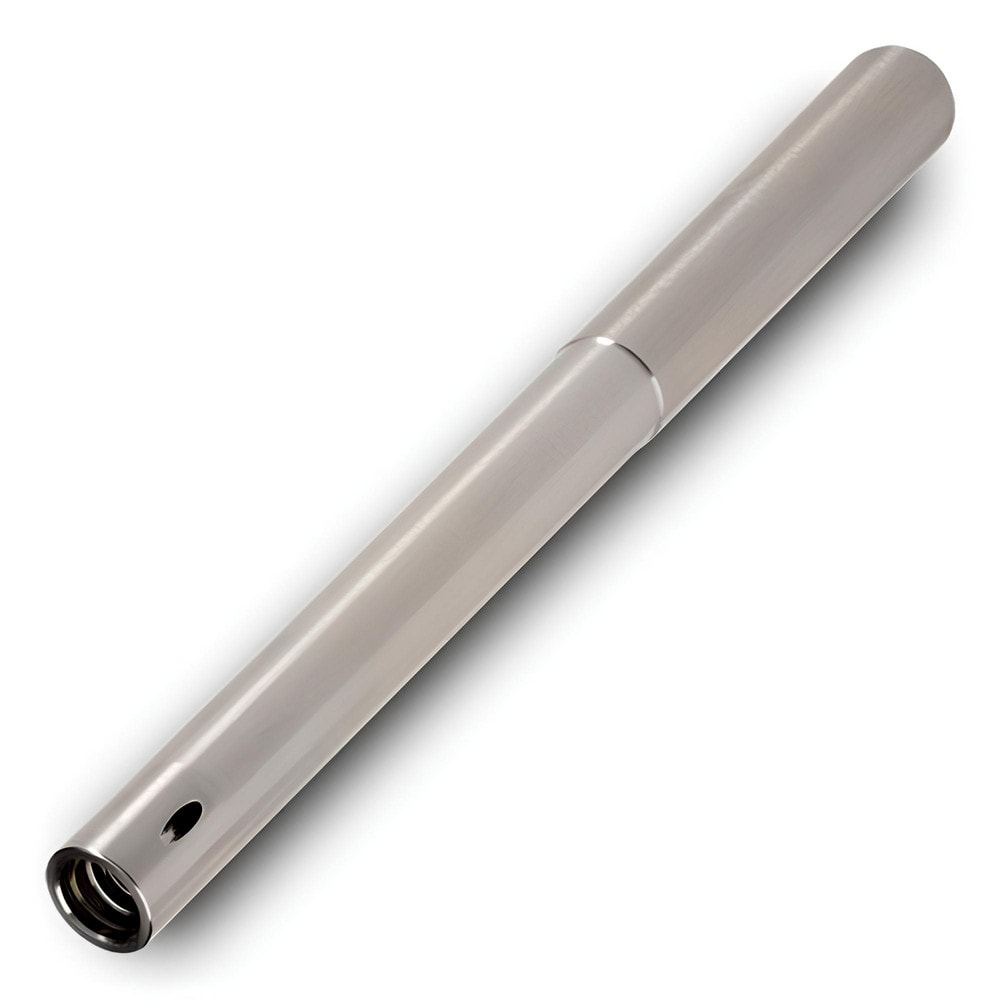

Brand: Ingersoll Cutting Tools / Part #: 4543005
Item #: 99325862
Brand: Ingersoll Cutting Tools
Model #: 4543005
Product Specifications
| Projection (mm) | 40.000 |
| Overall Length (mm) | 90.0000 |
| Neck Diameter (mm) | 9.600 |
| Neck Thread Size | T06 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 10.0000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 9.60 |
| Toolholder Style | S*T*HA |
| Tool Material | Heavy Metal |
| Series | S*T*HA |
| Tip Connection Size | T06 |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (mm) | 39.00 |
| Extension Length (mm) | 40.00 |
| Shank Shape | Round |
| Thread Size Connection to Tip | T06 |
| Manufacturers Catalog Number | S010T06HA040 |
| Type | "T" Style Thread Connection |
| Coolant Through | No |
