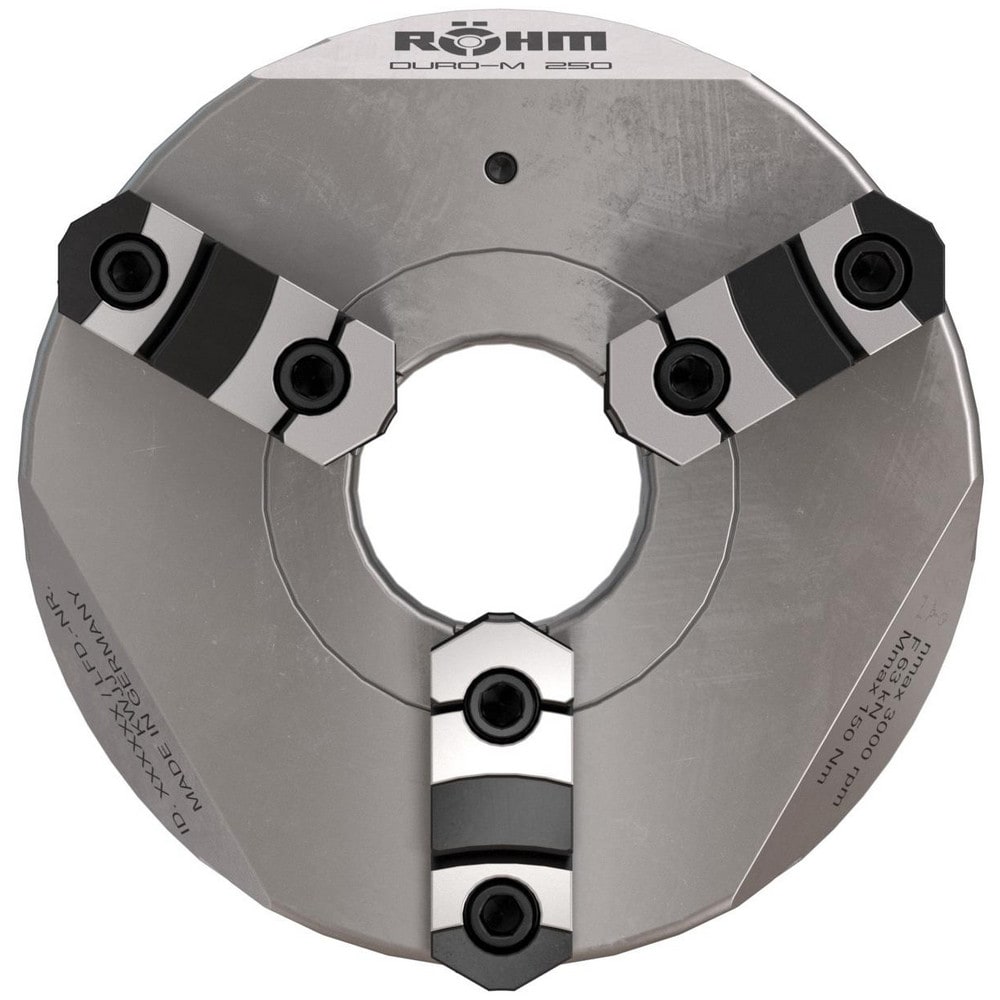

Brand: Rohm / Part #: 185314

Brand: Rohm / Part #: 185314


Item #: 13528419
Brand: Rohm
Model #: 185314

Product Specifications

Chuck Type Self-Centering
Number Of Jaws 3
Jaw Type Two-Piece Jaws
Adjustable Yes
Through-Hole Diameter (Inch) 3
Through-Hole Diameter (Decimal Inch) 2.9916
Body Material Forged Steel
Through-Hole Diameter (mm) 76
Reversible Jaws Reversible Jaws
Chuck Diameter (Decimal Inch) 250
Chuck Diameter (Inch) 10
Chuck Diameter (mm) 250
Minimum Jaw Capacity (Inch) 2.3600 (Internal); 0.2000 (External)
Minimum Jaw Capacity (mm) 5.00
Maximum Jaw Capacity (mm) 250
Maximum Jaw Capacity (Inch) 10.0400 (External)
Jaw Height (Inch) 2-1/4
Jaw Height (Decimal Inch) 2.26
Jaw Height (mm) 57.6
Maximum Rpm 3000
Mount Type Rear
Axial Runout (mm) 0.06
Axial Runout (Decimal Inch) 0.0024
Body Length (Decimal Inch) 3.23
Body Length 3-1/4
Body Length 82
Series DURO-M
Material Steel
Contents Mounting Screws; set of base and top jaws; T-bar
Product Service Code 3419
$ 1,349.91

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
