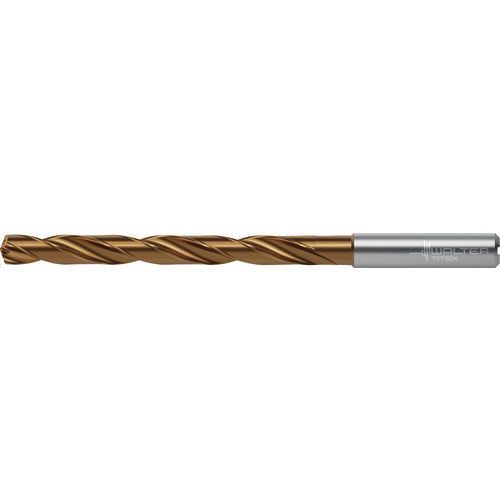

DC160-08-17.000A1-WJ30ET
Item #: TT097377947
Brand: Walter-Titex
Model #: 7377947
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 17 mm |
| Functional Length (LF) | 171 mm |
| Decimal Equivalent | 0.6693″ |
| Shank Type | Cylindrical |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 17 mm |
| Cutting Edge Material | Carbide |
| Length Group | 8xD |
| Flute Type | Spiral |
| Coating | TiSiAlCrN / TiAlN |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Overall Length (OAL) | 48 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees |
| Cutting Direction (HAND) | Right Hand |
