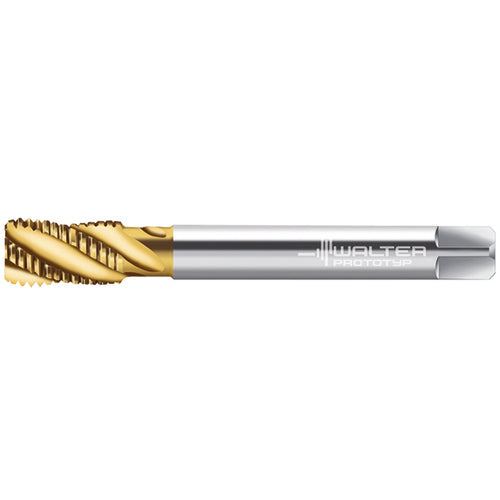

5/8″-18 UNF 2B 4 Flute HSS-E TIN Modified Bottoming Spiral Flute Tap
Item #: TT097528670
Brand: Walter-Prototyp
Model #: 7528670
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 18 |
| Chamfer | Modified Bottom |
| Thread Standard | UNF |
| Coating | TIN |
| Overall Length (OAL) | 100 mm |
| Flute Length | 43 mm |
| Usable Length (LU) | 56 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Grade | WY80AA |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| ToolTypeName | Spiral Flute Taps |
| Cutting Edge Material | HSS-E |
