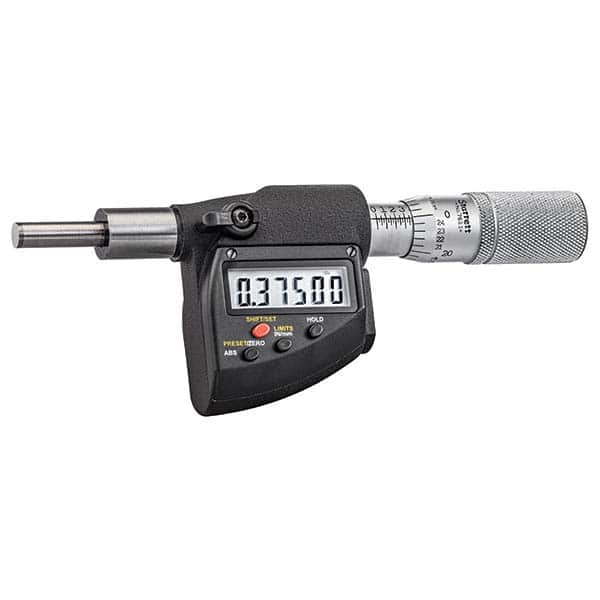

Starrett - Electronic Micrometer Heads Minimum Measurement (Inch): 1 Minimum Measurement (mm): 25
Item #: 18931691
Brand: Starrett
Model #: 762.1MEXFL-50
Product Specifications
Electronic Micrometer Heads; Minimum Measurement (Inch): 1 ; Minimum Measurement (mm): 25 ; Minimum Measurement (Decimal Inch): 1 ; Maximum Measurement (Inch): 2 ; Maximum Measurement (Decimal Inch): 2 ; Maximum Measurement (mm): 50
| Minimum Measurement (Inch) | 1 |
| Minimum Measurement (mm) | 25 |
| Minimum Measurement (Decimal Inch) | 1 |
| Maximum Measurement (Inch) | 2 |
| Maximum Measurement (Decimal Inch) | 2 |
| Maximum Measurement (mm) | 50 |
| Thimble Diameter (mm) | 19.00 |
| Thimble Diameter (Inch) | 3/4 |
| Spindle Diameter (mm) | 6.00 |
| Spindle Diameter (Decimal Inch) | 0.2500 |
| Spindle Length (mm) | 57.15 |
| Spindle Length (Decimal Inch) | 2.2500 |
| Overall Length (mm) | 175 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7 |
| Calibrated | No |
| Traceability Certification Included | No |
| Resolution (mm) | 0.001 |
| Resolution (Decimal Inch) | 0.00005 |
| Accuracy (mm) | 0.0020 |
| Accuracy (Decimal Inch) | ±.0001 |
| Water Resistance Rating | None |
| Rotating Spindle | Yes |
| Thimble Type | Friction Thimble |
| Spindle Type | Flat |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Length (Inch) | 3/4 |
| Shank Length (mm) | 19.000 |
| Collar Diameter (Decimal Inch) | 0.5000 |
| Collar Diameter (mm) | 12.00 |
| Clamp Nut Supplied | No |
| Data Output | RS232 |
| Measuring Face Material | Carbide |
| Number of Extension Rods | 0 |
| Battery Type | CR2032 |
| Series | 762.1 Electronic Digital Micrometer Heads |
