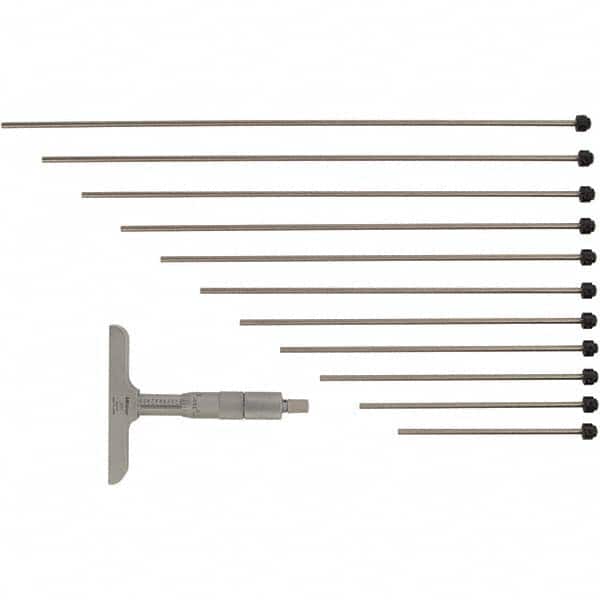

Mitutoyo - Mechanical Depth Micrometers Minimum Measurement (Decimal Inch): 0 Maximum Measurement (Decimal Inch): 12
Item #: 14344345
Brand: Mitutoyo
Model #: 129-150CAL
Features and Benefits
Non-rotating rods are designed where the spindle rod does not rotate with the thimble.
Ratchet stop thimbles offer audible feedback and constant measuring force on the spindle while measuring. They may cause micro-shocks and require two hands to make a measurement.
Product Specifications
Mechanical Depth Micrometers; Minimum Measurement (Decimal Inch): 0 ; Maximum Measurement (Decimal Inch): 12 ; Base Length (Inch): 4 ; Features: None ; Rod Type: NonRotating ; Number of Rods: 12
| Minimum Measurement (Decimal Inch) | 0 |
| Maximum Measurement (Decimal Inch) | 12 |
| Base Length (Inch) | 4 |
| Features | None |
| Rod Type | NonRotating |
| Number of Rods | 12 |
| Thimble Type | Ratchet Stop |
| Graduation (Decimal Inch) | 0.001 |
| Rod Diameter (mm) | 4.00 |
| Calibrated | Yes |
| Traceability Certification Included | NIST |
| Traceability Certification Included | NIST |
| Includes | Plastic Case |
| Base Flatness (Decimal Inch) | 0.000080 |
