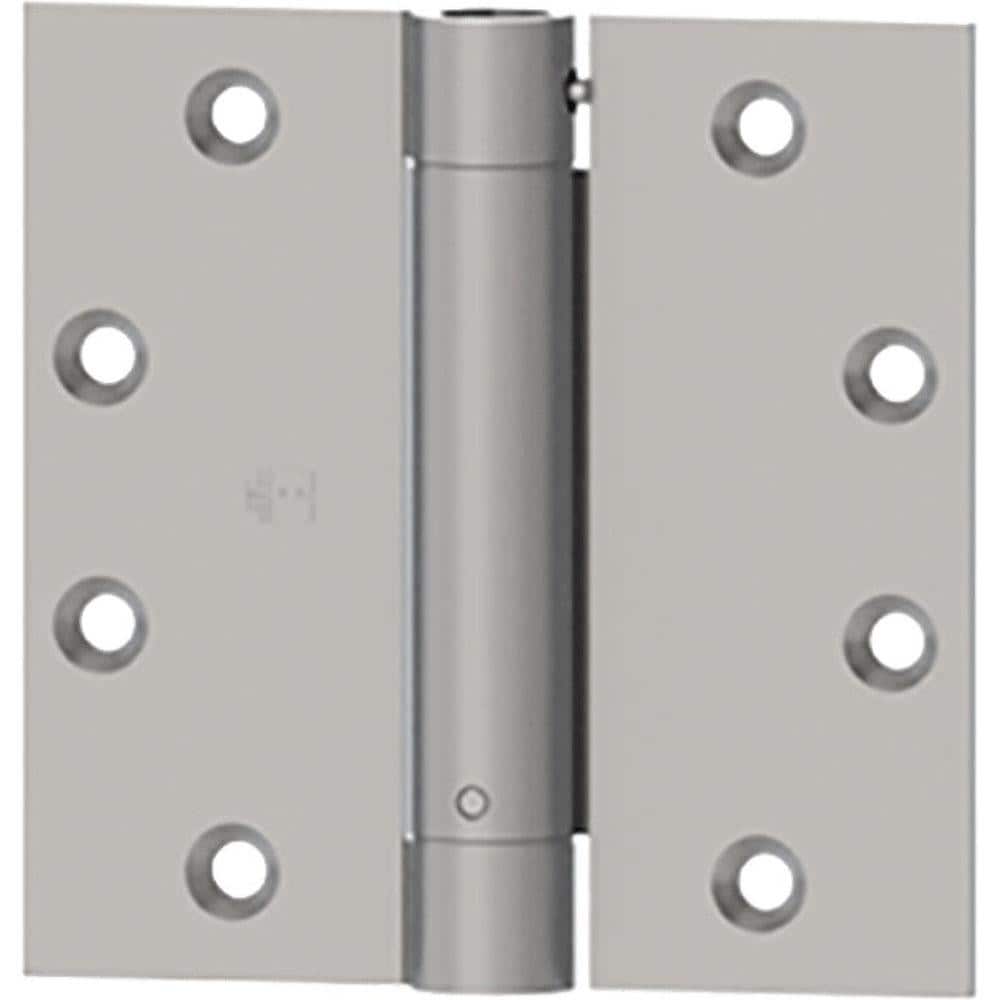

Commercial Hinges; Mount Type: Full-Mortise; Hinge Material: Steel; Length (Inch): 4-1/2; Finish: Bright Brass; Door Leaf Height (Decimal Inch): 4.5000; Door Leaf Width (Decimal Inch): 2.2500; Frame Leaf Height (Decimal Inch): 4.5000
Item #: 04640702
Brand: Hager
Model #: 1250 4-1/2X4-1/2 US3
Product Specifications
| Mount Type | Full-Mortise |
| Hinge Material | Steel |
| Length (Inch) | 4-1/2 |
| Finish | Bright Brass |
| Door Leaf Height (Decimal Inch) | 4.5000 |
| Door Leaf Width (Decimal Inch) | 2.2500 |
| Frame Leaf Height (Decimal Inch) | 4.5000 |
| Frame Leaf Width (Decimal Inch) | 2.2500 |
| Leaf Thickness (Decimal Inch) | 2.2500 |
| Number Of Mounting Holes | 8.000 |
| Pin Diameter (Decimal Inch) | 0.2500 |
| Pin Material | Steel |
| Overall Width (Inch) | 4-1/2 |
| Stanley Finish Code | US3 |
| Hand | Non Handed |
| Number of Ball Bearings | 0 |
| Material Grade | Non-Graded |
| Pin Type | Pin |
| Manufacturer's Part Number | 1250 4-1/2X4-1/2 US3 |
| Minimum Thickness (mm) | 0.5000 |
| UNSPSC Code | 31162403 |
