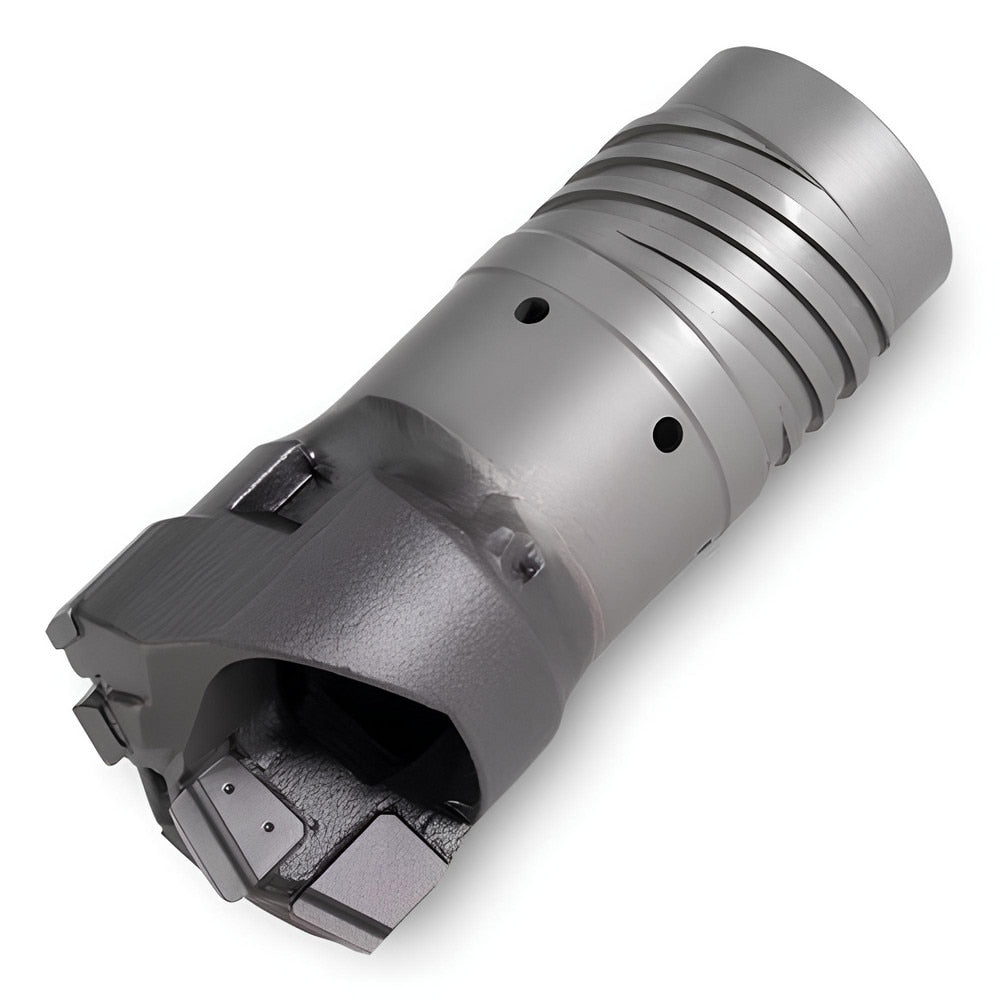

Brand: Ingersoll Cutting Tools / Part #: 4808153
Item #: 95361200
Brand: Ingersoll Cutting Tools
Model #: 4808153
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 1.1250 |
| Diameter (Decimal Inch) | 1.1250 |
| Point Angle | 30.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | TB334 |
| Cutting Direction | Right Hand |
| Series | BTA...DE4 |
| Coating Process | PVD |
| Height (Decimal Inch) | 2.380000 |
| Head Length (Decimal Inch) | 2.3800 |
| Insert Holding Method | Pin |
| Overall Length (mm) | 60.4500 |
| ISO Number | BTA1.125DE4-26 TB334 |
| Coolant Through | Yes |
| Cutting Diameter (Decimal Inch) | 1.1250 |
| Flute Length (mm) | 56.90 |
| Style | BTA...DE4 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
