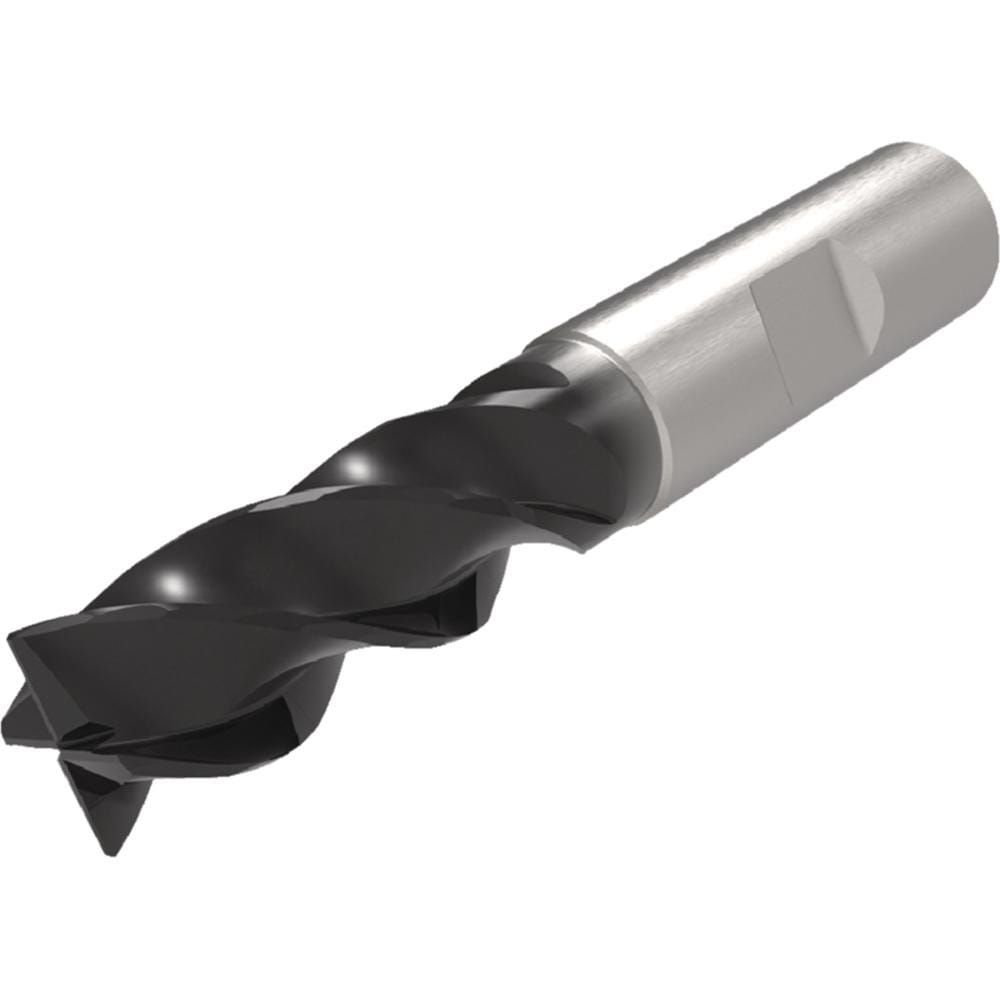

Brand: Widia / Part #: 6830285

Brand: Widia / Part #: 6830285


Item #: 97936157
Brand: Widia
Model #: 6830285

Product Specifications

Mill Diameter (mm) 16.00
Chamfer Width (mm) 0.300
Coating/Finish AlTiN
End Mill Material Solid Carbide
Number Of Flutes 4
Single Or Double End Single
Overall Length (mm) 92.0000
Length of Cut (mm) 32.0000
Cutting Direction Right Hand
Coolant Through No
Flute Direction Right Hand
Helix Angle 36
Chipbreaker No
Chamfer Angle 45.000
Length Type Regular
Flute Type Variable
Extended Reach Yes
Shank Type Weldon Flat
Centercutting Yes
Variable Index Yes
Variable Helix Yes
Material Removal Type Finishing
Shank Diameter (mm) 16.0000
Neck Diameter (mm) 15.040
Reach Length (mm) 48.00
Minimum Helix Angle 37
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code S; H; K; M
Secondary Workpiece Material High Temperature Alloy
Secondary Workpiece Material Code S
Material Grade WS15PE
Series 4XNE
Coating Classification PVD
Chamfer Length (mm) 0.30
Helix Style Variable
$ 199.86
