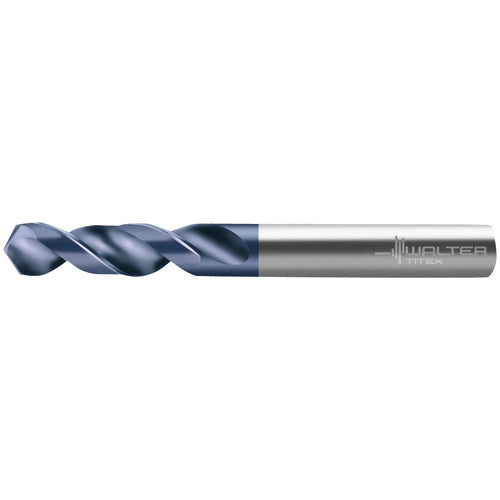

A1154TFT-2.5 VA Inox, HSS-Co Drill, TFT Coated
Item #: TT105200087
Brand: Walter-Titex
Model #: 5200087
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 2.5 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.0984 |
| Standard | DIN 1897 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.5 mm |
| Connection Diameter Machine Side (DCONMS) | 2.5 mm |
| Measurement Type | Metric |
| L Group | 3xD |
| Cutting Edge Material | HSS |
| Tool Radius | 118 Degrees |
| Coolant Supply Property (CSP) | External |
| Series/List # | A1154TFT |
| Cutting Depth | 10 mm |
| Flute Count (NOF) | 2 |
| Flute Length | 14 mm |
| Overall Length (OAL) | 43 mm |
| Helix Angle | CW|38 Degrees |
