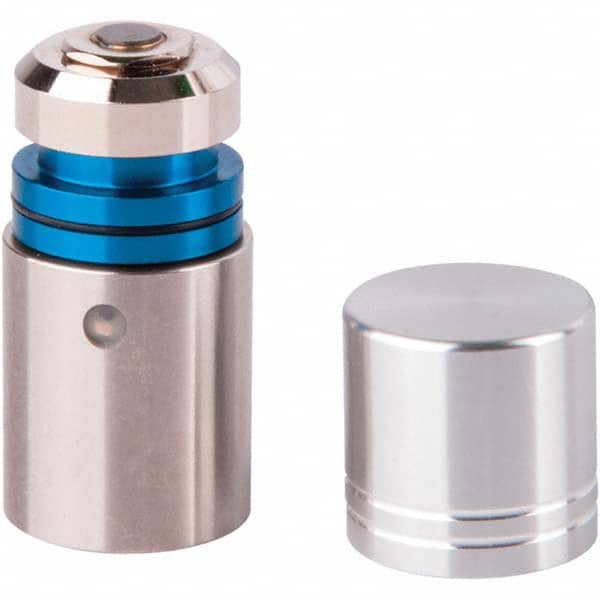

Fowler - 40mm OAH x 20mm OAW x 40mm OAL Magnetic Height Offset Gage
Item #: 95916656
Brand: Fowler
Model #: 54-188-140-0
Features and Benefits
Height offset gages measure the height offset of a workpiece as it relates to the position of the cutting tool.
| Product Specifications | |
|---|---|
| Type | Height Offset Gage |
| Overall Height (mm) | 40 |
| Overall Height (Decimal Inch) | 1.574 |
| Overall Width/Diameter (mm) | 20.00 |
| Overall Width/Diameter (Decimal Inch) | 0.7870 |
| Overall Length (mm) | 40 |
| Power Source | SR44 |
| Magnetic | Yes |
| Includes Indicator | Yes |
| Taper Size | None |
| Height Measuring Capacity (Inch) | 2 |
| Height Measuring Capacity (Decimal Inch) | 1.5700 |
| Diameter Capacity (Decimal Inch) | 1.5700 |
| Accuracy (Decimal Inch) | 0.00004 |
| Detection Type | Magnetic Band |
| Plate Diameter (Decimal Inch) | 0.1960 |
| Plate Material | Carbide |
| Stroke (Decimal Inch) | 0.0800 |
