Guhring - 1/16" 118° Spiral Flute Cobalt Screw Machine Drill Bit - Exact Tooling

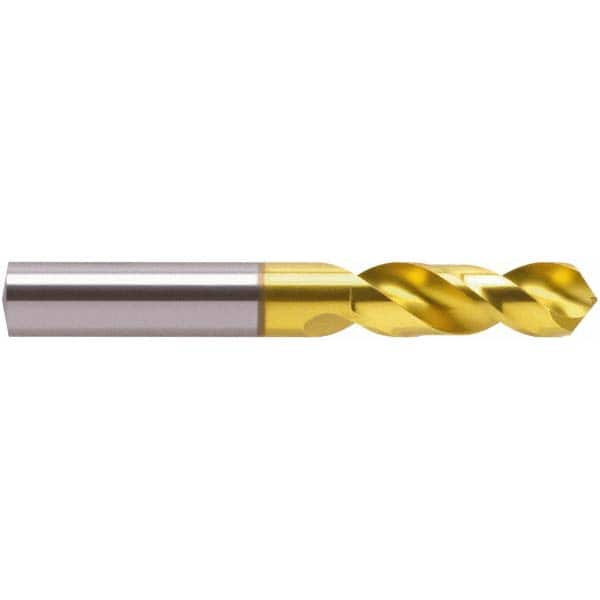

Guhring - 1/16" 118° Spiral Flute Cobalt Screw Machine Drill Bit


Item #: 41856162
Brand: Guhring
Model #: 9055200015900

Features and Benefits

Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
Product Specifications
Drill Bit Size (Decimal Inch) 0.0625
Drill Bit Size (Inch) 1/16
Drill Point Angle 118
Drill Bit Material Cobalt
Drill Bit Finish/Coating TiN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Flute Length (mm) 9.00
Overall Length (mm) 32.00
Flute Length x Diameter Ratio 3xD
Point Type Four Facet, Split Point
Shank Diameter (mm) 1.59
Shank Diameter (Decimal Inch) 0.0625
Shank Diameter (Inch) 1/16
Specification Designation DIN
Spiral Type Regular Spiral
Threaded Shank No
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) +0.000 to -0.014
Drill Tip Finish/Coating None
Specification Number DIN 1897
Series/List 5520
Length Type Stub
$ 7.15
