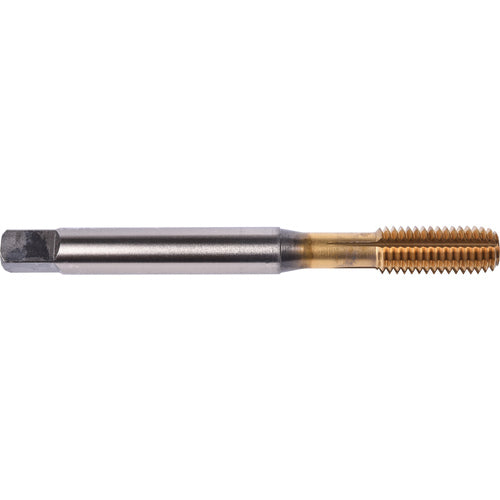

M10 1.25 MM Union Butterfield HSS-PM TiN/Top Applix MF MF Machine Forming Tap Fluteless DIN/ANSI E-code # 1687APM10X1.25
Item #: UB5946204956
Brand: Union Butterfield
Model #: 6204956
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coating | TiN |
| Thread Diameter Size (TDZ) | M10 |
| Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 1.25 mm |
| Length Group | 3D |
| Overall Length (OAL) | 100 mm |
| Square Size | 0.286″ |
| Thread Cutting Part Length (THL) | 16 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Style | Semi-Bottoming |
| Thread Tolerance Class (TCTR) | 6H |
| Cutting Edge Material | HSSCoPM |
| Tap Standard | DIN|ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | Metric |
| Thread Size | M10 × 1.25 |
| Applicable Material | Aluminum|Copper|Hardened Steel|Steel|Titanium |
