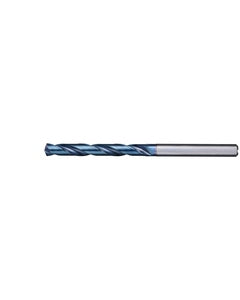

12.3 mm Dia. × 13 mm Shank Dia. × 167 mm OAL, 140 Degrees, 5xD, 2 Flutes, Aqua Revo D, Solid Carbide Drills
Item #: AC880777422
Brand: Nachi America Inc
Model #: 0777422
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 12.3 mm |
| Functional Length (LF) | 103 mm |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 12.3 mm |
| Tool Type | Drill |
| Length Group | 5xD |
| Usable Length (LU) | 105 mm |
| Coating | Aqua Revo D |
| Overall Length (OAL) | 167 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 13 mm |
| Cutting Direction (HAND) | Right Hand |
| Point Angle (SIG) | 140 Degrees |
