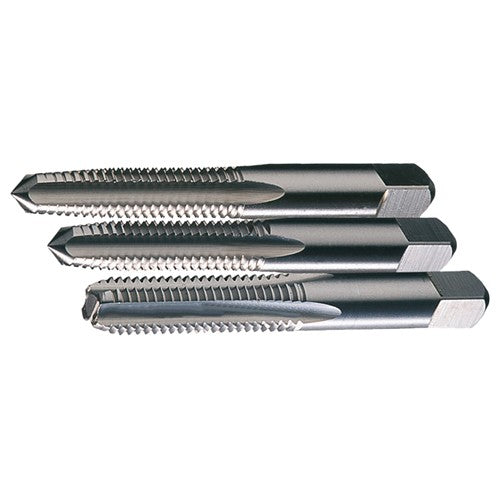

M18x2.5 4 Flute D6 Taper-Plug-Bottoming HSS Standard Straight Flute 3-Piece Hand Tap Set- Bright
Item #: VT10174552
Brand: Greenfield Threading
Model #: 174552
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M18 |
| Connection Diameter Machine Side (DCONMS) | 13.77 mm |
| Pitch in mm | 2.5 mm |
| Flute Count (NOF) | 4 |
| Flute Type | Straight |
| Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | D6 |
| Quantity | 3 |
| Style | Taper|Plug|Bottoming |
| Application | General Purpose |
| Tool Type | Tap | Hand Taps |
| Measurement Type | Metric |
| Shank Type | Round w/ Drive Square |
| Series/List # | HTGP-3PC |
| Flute Length | 46 mm |
| Thread Cutting Part Length (THL) | 27.69 mm |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 2.5 mm |
| Coating | Bright |
| Thread Size | M18 × 2.5 |
| Overall Length (OAL) | 102.36 mm |
