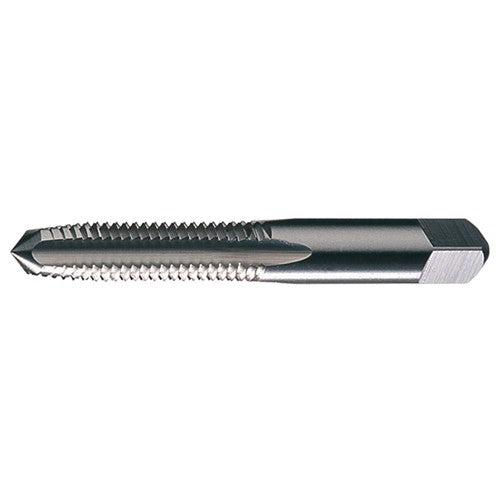

1-1/2-12 UNF 6 Flute H4 Bottoming HSS Standard Straight Flute Hand Tap- Bright
Item #: VT10308838
Brand: Greenfield Threading
Model #: 308838
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-1/12″ |
| Chamfer | Bottoming |
| Threads per Inch (TPI) | 12 |
| Coating | Bright |
| Thread Standard | NF |
| Flute Type | Straight |
| Overall Length (OAL) | 6-3/8″ |
| End Shape | Square |
| Thread Cutting Part Length (THL) | 3″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 1.233″ |
| Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 6 |
| Cutting Direction (HAND) | Right Hand |
| Application | General Purpose |
| Length Group | 2D |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Measurement Type | Inch |
| Cutting Edge Material | HSS |
| Series/List # | HTGP |
| Thread Tolerance Class (TCTR) | H4 | 2B |
| Thread Size | 1-1/12″ - 12 |
| Tool Type | Hand Tap |
