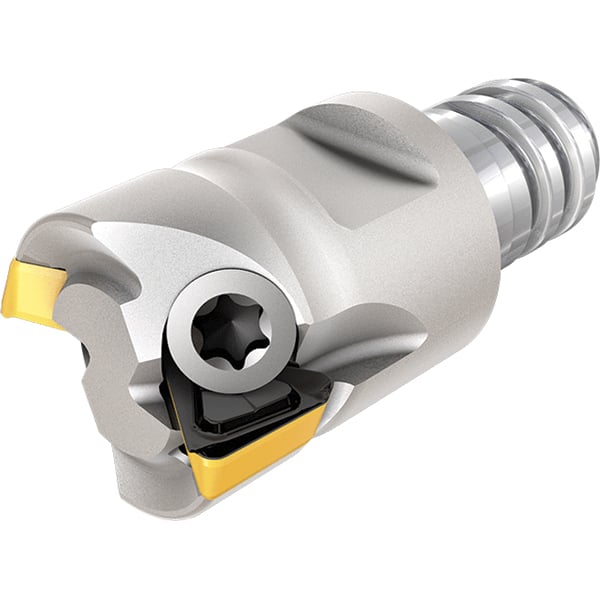

Iscar - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 8.00 Cutting Diameter (Decimal Inch): 0.3140
Item #: 15109689
Brand: Iscar
Model #: 3350628
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 8.00 ; Cutting Diameter (Decimal Inch): 0.3140 ; Shank Diameter (mm): 7.6000 ; Shank Diameter (Decimal Inch): 0.2990 ; Modular Connection Size: T05 ; Overall Length/Projection (mm): 16.75
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3140 |
| Shank Diameter (mm) | 7.6000 |
| Shank Diameter (Decimal Inch) | 0.2990 |
| Modular Connection Size | T05 |
| Overall Length/Projection (mm) | 16.75 |
| Overall Length/Projection (Decimal Inch) | 0.6594 |
| Series | HM390 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Weldon Flat | No |
| Modular Connection Thread Size | T05 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Noncoolant Through |
| Shank Diameter (Decimal Inch) | 0.2990 |
| Series | HM390 |
| Overall Length (Decimal Inch) | 0.65900 |
| Insert Holding Method | Screw |
