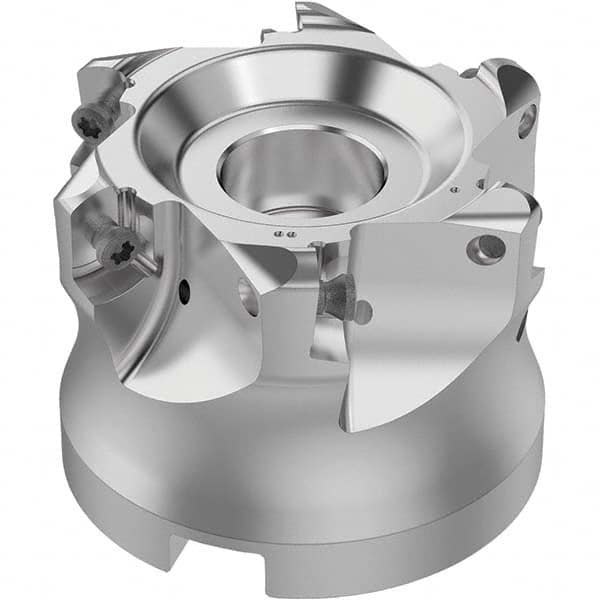

Seco - Indexable High-Feed Face Mills Cutting Diameter (mm): 66.00 Maximum Depth of Cut (mm): 1.80
Item #: 94870631
Brand: Seco
Model #: 03252423
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (mm): 66.00 ; Maximum Depth of Cut (mm): 1.80 ; Arbor Hole Diameter (mm): 27.00 ; Overall Height (mm): 50.00 ; Series: R220.21 ; Cutter Style: R220.21
| Cutting Diameter (mm) | 66.00 |
| Maximum Depth of Cut (mm) | 1.80 |
| Arbor Hole Diameter (mm) | 27.00 |
| Overall Height (mm) | 50.00 |
| Series | R220.21 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | LP..09 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 21600 |
| Number of Flutes | 6 |
| Maximum Body Diameter (mm) | 66.00 |
| Through Coolant | Yes |
| Keyway Width (mm) | 12.40 |
| Manufacturers Catalog Number | R220.21-0066-LP09.6A |
