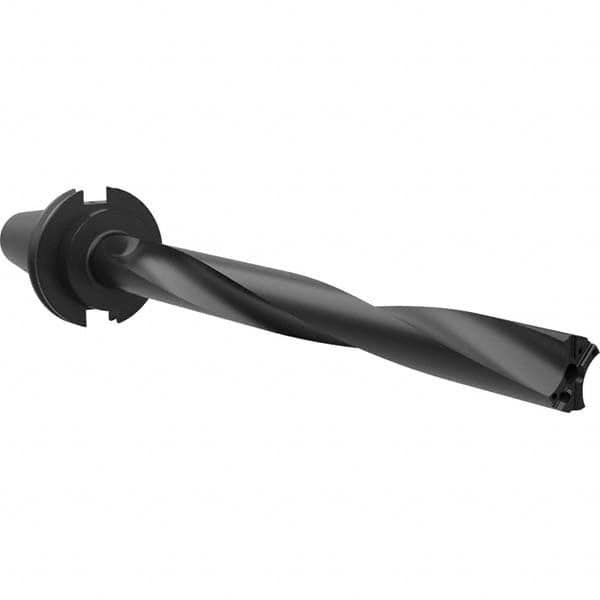

Allied Machine and Engineering - Drill Bodies Series: APX 33 Head Connection Size: 33
Item #: 16975831
Brand: Allied Machine and Engineering
Model #: W3310H-CV50
Product Specifications
Drill Bodies; Series: APX 33 ; Head Connection Size: 33 ; Drill Depth by Diameter Ratio: 10xD ; Shank Taper Size: CV50 ; Shank Diameter (Decimal Inch): 1.2992 ; Drill Body Length to Flange (Decimal Inch): 17.8400
| Series | APX 33 |
| Head Connection Size | 33 |
| Drill Depth by Diameter Ratio | 10xD |
| Shank Taper Size | CV50 |
| Shank Diameter (Decimal Inch) | 1.2992 |
| Drill Body Length to Flange (Decimal Inch) | 17.8400 |
| Toolholder Style | CV50 |
| Nose Diameter (mm) | 37.99 |
| Nose Diameter (Decimal Inch) | 1.4960 |
| Overall Length (Decimal Inch) | 21.9700 |
| Gage Length (Decimal Inch) | 17.8400 |
| Through Coolant | Through Coolant ;Yes |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/4 |
