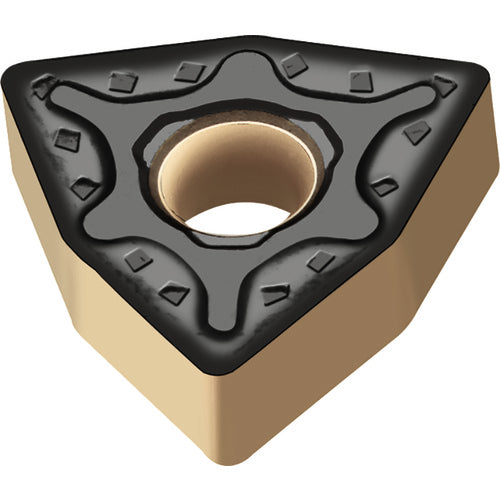

WNMG 432 Double-sided|G WPP20, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, 80° Trigon, Turning Indexable Insert
Item #: WC105092472
Brand: Walter
Model #: 5092472
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ |
| Fixing Hole Diameter (D1) | 13/64″ |
| Insert Size | 432 |
| Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.342″ |
| Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ |
| Chip Breaker Type | Double-sided|G |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Shape | 80° Trigon |
| Grade | WPP20 |
| Series/List # | WNMG-WPP20 |
