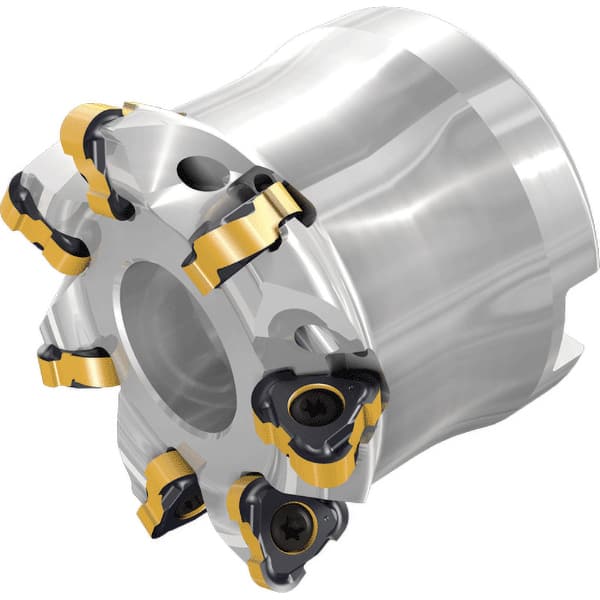

Iscar - Indexable Copy Face Mills Cutting Diameter (mm): 61.00 Cutting Diameter (Decimal Inch): 2.4010
Item #: 15110588
Brand: Iscar
Model #: 3320742
Product Specifications
Indexable Copy Face Mills; Cutting Diameter (mm): 61.00 ; Cutting Diameter (Decimal Inch): 2.4010 ; Maximum Depth of Cut (mm): 2.50 ; Maximum Depth of Cut (Decimal Inch): 0.0980 ; Arbor Hole Diameter (mm): 22.00 ; Arbor Hole Diameter (Decimal Inch): 0.8660
| Cutting Diameter (mm) | 61.00 |
| Cutting Diameter (Decimal Inch) | 2.4010 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8660 |
| Overall Height (mm) | 40.00000 |
| Overall Height (Decimal Inch) | 1.5740 |
| Series | TR6 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | TR |
| Cutter Style | TOR6MILL |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.8890 |
| Hub Diameter (mm) | 48.000 |
| Overall Diameter (Decimal Inch) | 1.8890 |
| Overall Diameter (mm) | 48.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5980 |
