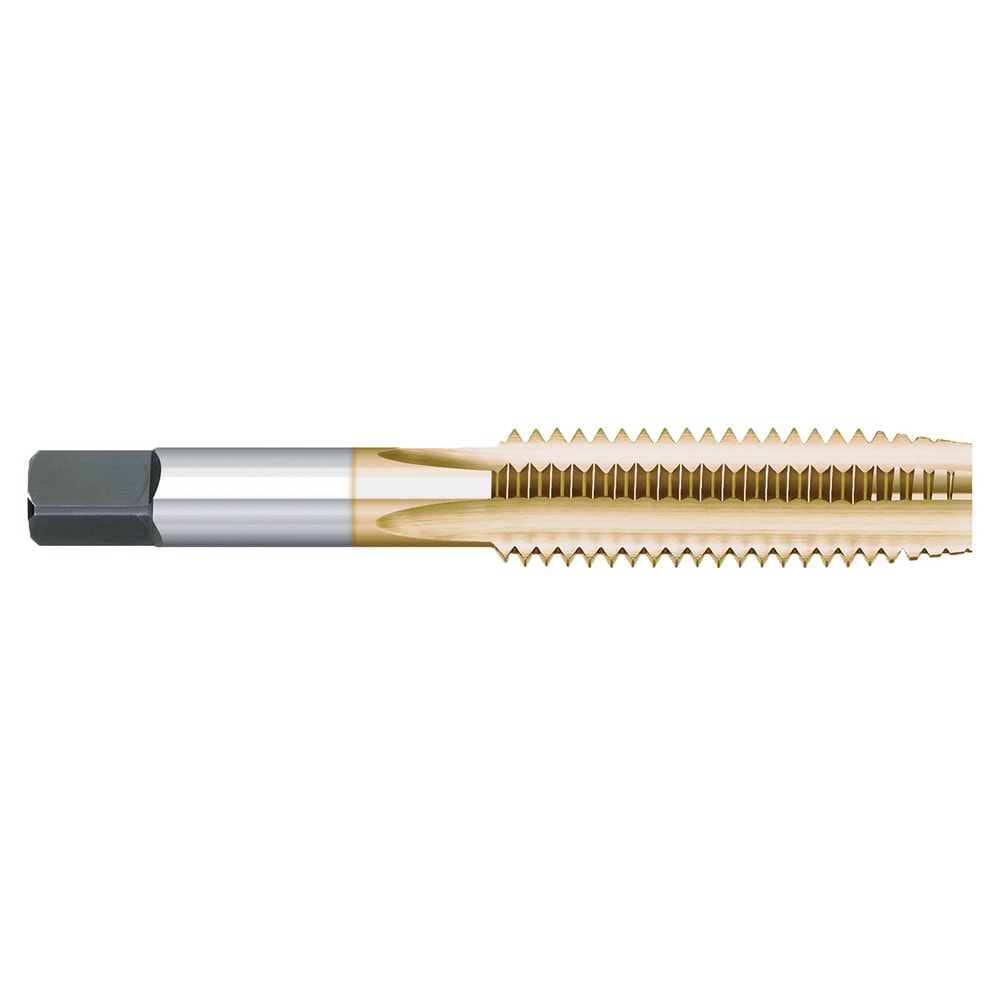

Brand: Titan USA / Part #: TT82954TIN
Item #: 87745352
Brand: Titan USA
Model #: TT82954TIN
Product Specifications
| Thread Size (Inch) | 7/16-20 |
| Thread Limit | H3 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | TiN |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Overall Length (Decimal Inch) | 3.1563 |
| Thread Length (Decimal Inch) | 1.4375 |
| Thread Length (Inch) | 1-7/16 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Length (Inch) | 0.4063 |
| Square Size (Decimal Inch) | 0.2420 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - Left Hand |
