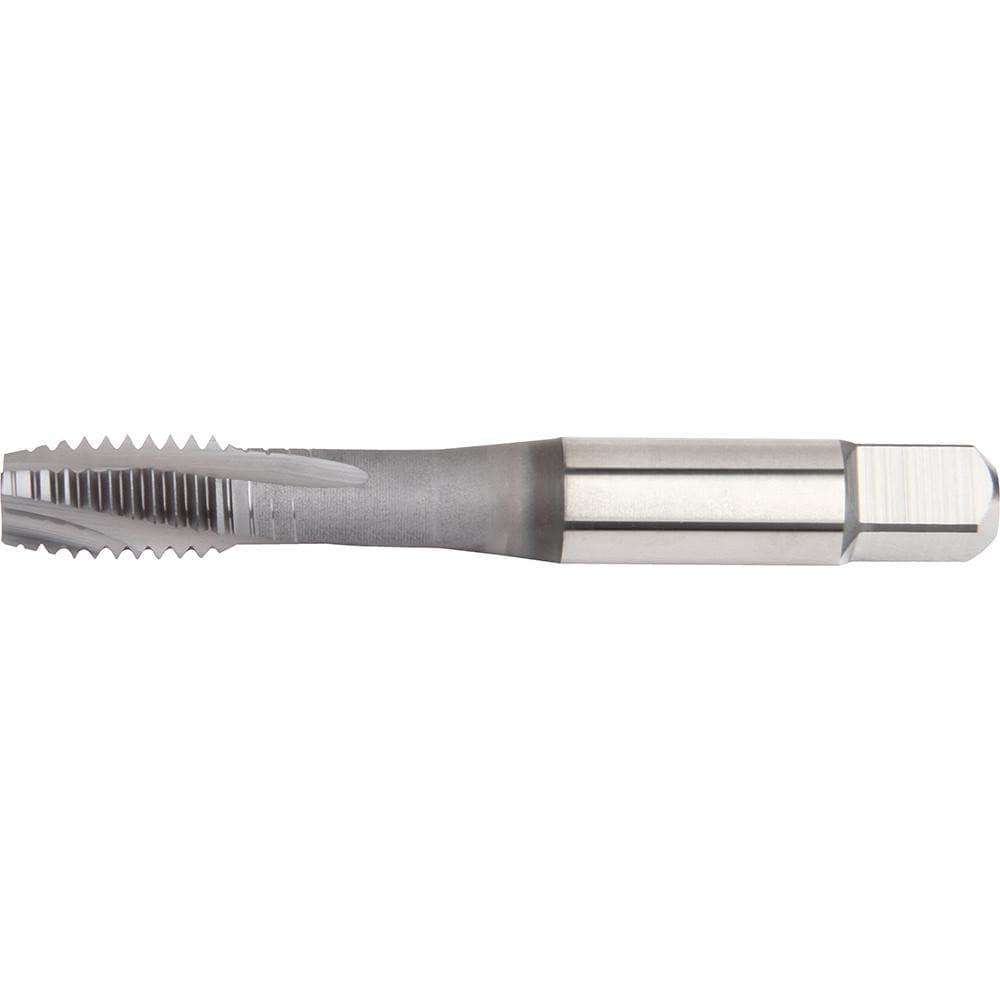

Brand: Widia / Part #: 5708194
Item #: 97406409
Brand: Widia
Model #: 5708194
Product Specifications
| Thread Size (Inch) | 1/2-20 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide; Nitride |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.7700 |
| Overall Length (Decimal Inch) | 3.3800 |
| Thread Depth (Decimal Inch) | 1.7400 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNF |
| Material Grade | WS39MG |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Size (Decimal Inch) | 0.2720 |
| Material Application | High-Temperature Alloy |
| Series | GT92 |
