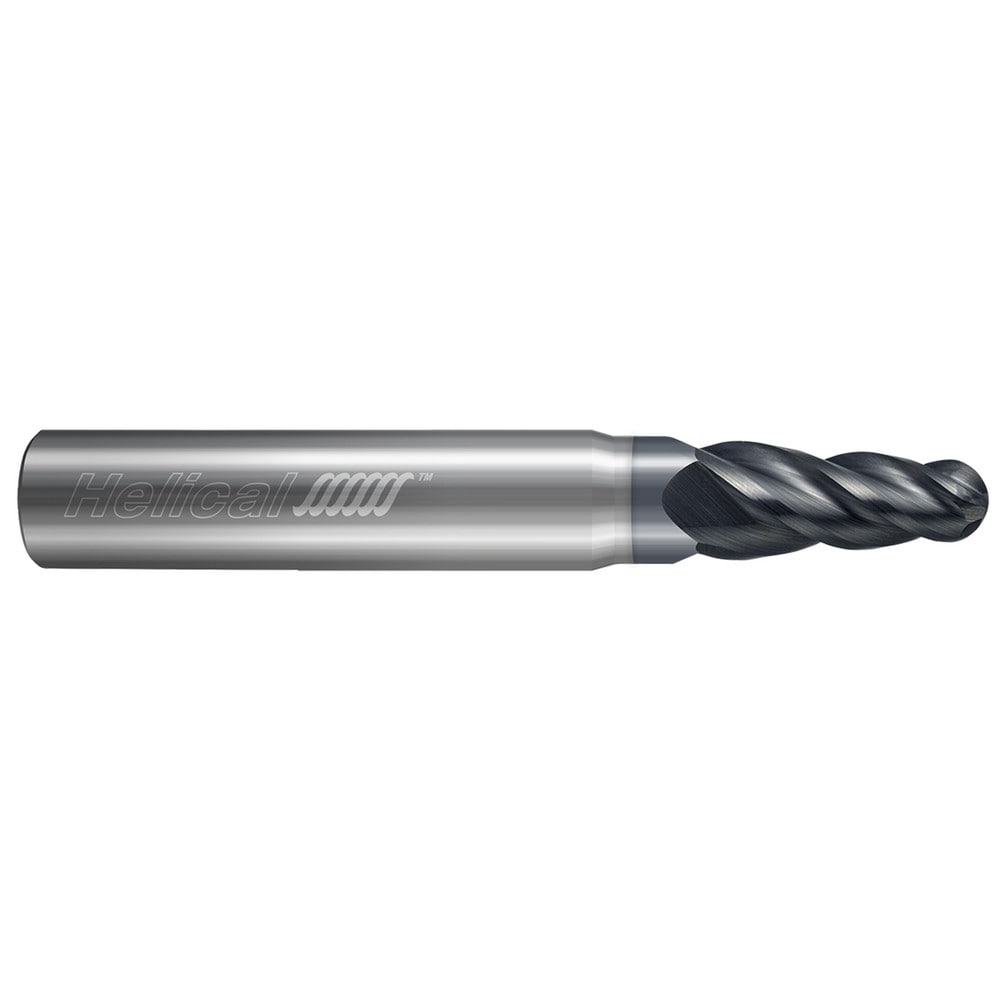

Brand: Helical Solutions / Part #: 84904
Item #: 36896835
Brand: Helical Solutions
Model #: 84904
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 1-1/4 |
| Taper Angle Per Side | 3.00 |
| End Mill Material | Solid Carbide |
| End Shape | Ball |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Small End Diameter (Decimal Inch) | 0.2500 |
| Small End Diameter (Inch) | 1/4 |
| Flute Direction | Right Hand |
| Series | Specialty Profiles - Tapered End Mills - 4 Flute - Ball - Variable Pitch |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Coolant Through | No |
| Coating/Finish | Aplus |
| Number Of Flutes | 4 |
| Included Angle Degree | 6 |
