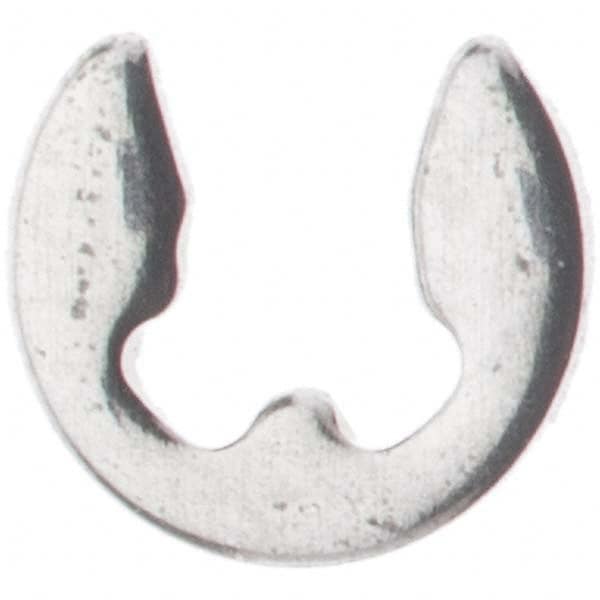

Rotor Clip - 8 to 11mm Shaft Diam, 7mm Groove Diam, Stainless Steel Metric External E Style Retaining Ring
Item #: 99622458
Brand: Rotor Clip
Model #: DE-7SG
Features and Benefits
E-style external retaining rings snap into grooves from the side of a shaft. They are ideal for use on small-diameter shafts. E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | E Style |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 8.00 to 11.00 |
| Groove Diameter (mm) | 7.00 |
| Free Outside Diameter (mm) | 13.80 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | DIN 1.4122 |
| Nominal Size (mm) | 7.00 |
| Groove Width (mm) | 0.94 |
| Ring Thickness (mm) | 0.90 |
| Minimum Shaft Diameter (mm) | 8.00 |
| Maximum Shaft Diameter (mm) | 11.00 |
| Groove Width Tolerance (mm) | 0.000 to 0.050 |
| Ring Thickness Tolerance (mm) | -0.020 to 0.020 |
