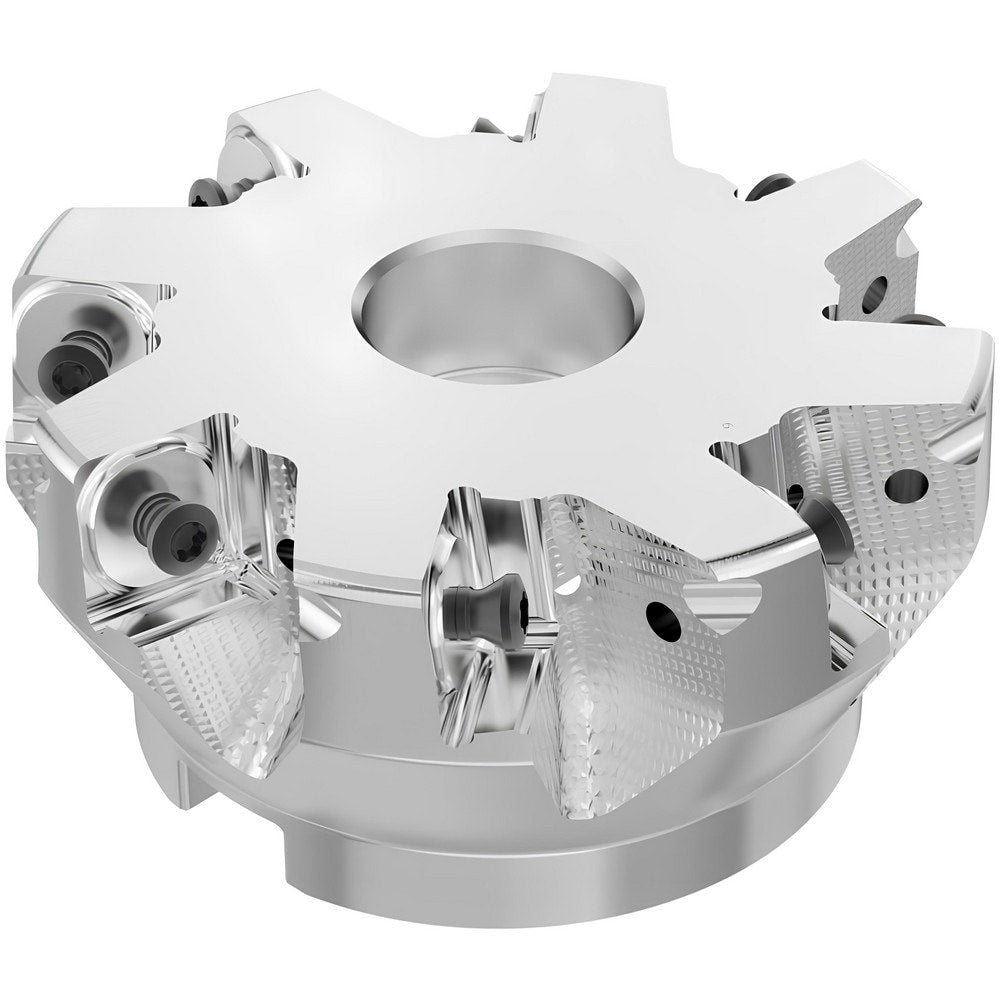

Brand: Seco / Part #: 10134821
Item #: 40066151
Brand: Seco
Model #: 10134821
Product Specifications
| Minimum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0630 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Lead Angle | 88.000 |
| Compatible Insert Size Code | 16 |
| Cutter Style | R220.88 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -8 |
| Series | R220.88 |
| Hub Diameter (Decimal Inch) | 3.0315 |
| Keyway Width (Decimal Inch) | 0.6299 |
| Overall Height (Decimal Inch) | 1.9685 |
| Pitch Type | Normal |
| Maximum RPM | 5600.000 |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SN.U1606 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.88-04.00-16-8SAP |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Yes |
| Number Of Flutes | 8 |
