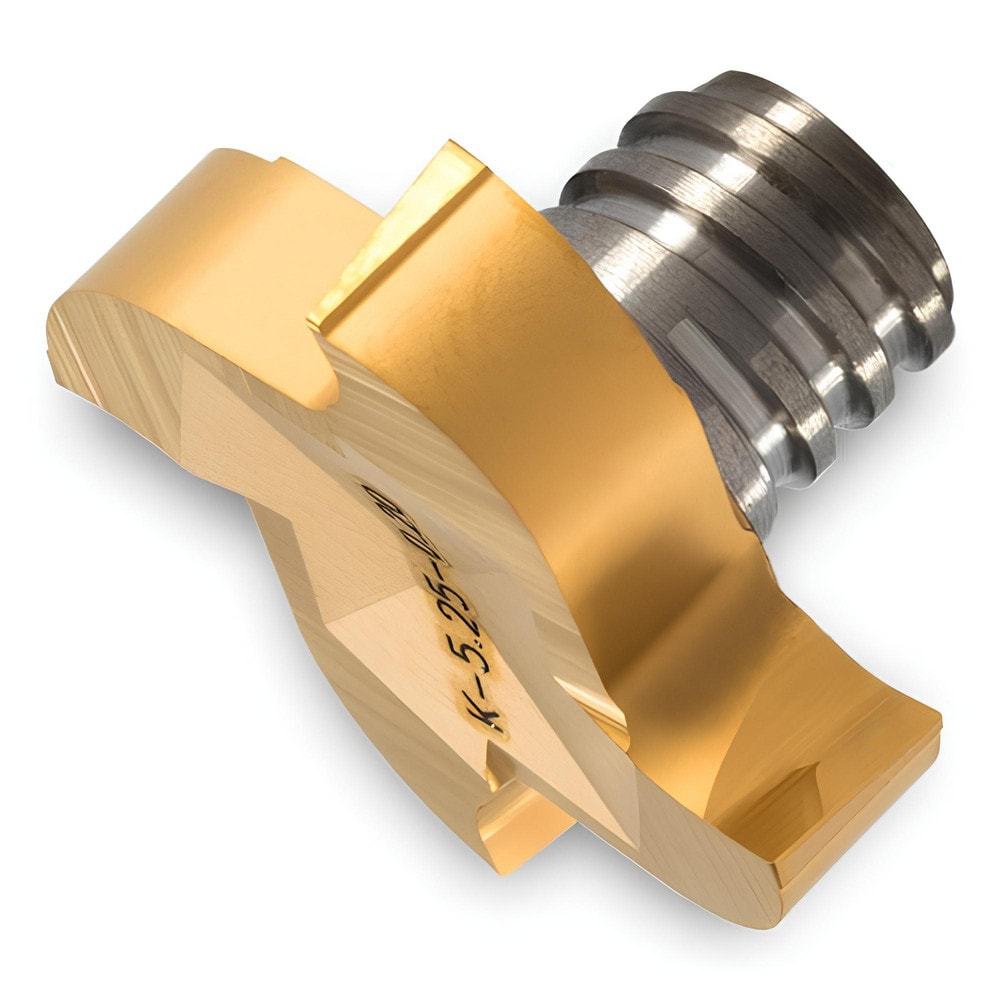

Brand: Ingersoll Cutting Tools / Part #: 5873313
Item #: 94529005
Brand: Ingersoll Cutting Tools
Model #: 5873313
Product Specifications
| Milling Tip Type | T-Slot |
| Milling Tip Style | 17T |
| Maximum Depth of Cut (mm) | 4.50 |
| Cutting Diameter (mm) | 21.70 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 4.50 |
| Manufacturer Grade | IN1530 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 17T |
| Coating Process | PVD |
| Corner Radius (mm) | 5.08 |
| Cutting Width (mm) | 3.170 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Thread Size | T08 |
| Manufacturers Catalog Number | 17T21731T8RK02 |
| Length of Cut (mm) | 3.3200 |
| Coolant Through | No |
| Overall Length (mm) | 3.3200 |
| Included Angle Degree | 90 |
| Coating/Finish | TiCN; TiN |
| Number Of Flutes | 4 |
