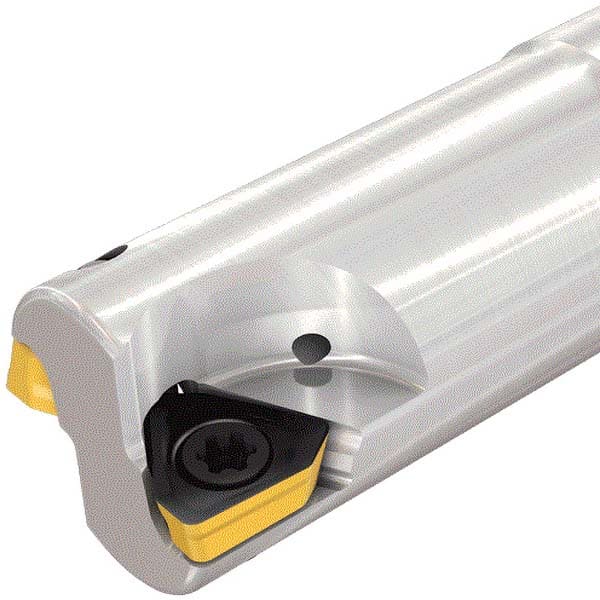

Iscar - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 16.00 Cutting Diameter (Decimal Inch): 0.6290
Item #: 61036513
Brand: Iscar
Model #: 3345995
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 16.00 ; Cutting Diameter (Decimal Inch): 0.6290 ; Shank Type: Cylindrical ; Shank Diameter (mm): 16.0000 ; Shank Diameter (Decimal Inch): 0.6290 ; Overall Length/Projection (mm): 90.00
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6290 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.0000 |
| Shank Diameter (Decimal Inch) | 0.6290 |
| Overall Length/Projection (mm) | 90.00 |
| Overall Length/Projection (Decimal Inch) | 3.5433 |
| Series | HM390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 0.7870 |
| Weldon Flat | No |
| Shank Length (Decimal Inch) | 3.5430 |
| Shank Length (mm) | 90.000 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.6290 |
| Series | HM390 |
| Overall Length (Decimal Inch) | 3.54300 |
| Insert Holding Method | Screw |
