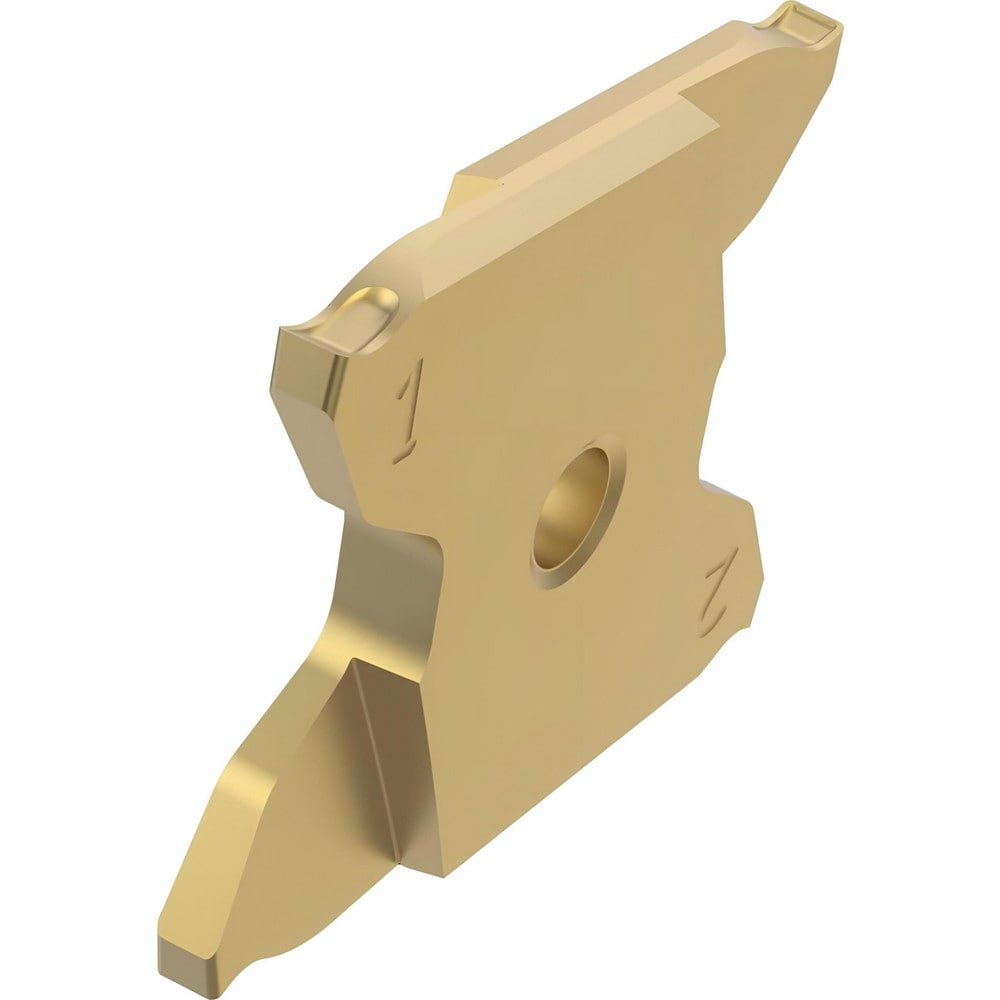

Brand: Seco / Part #: 10109539
Item #: 14184774
Brand: Seco
Model #: 10109539
Product Specifications
| Insert Style | X4GK |
| Insert Size Code | 2503 |
| Insert Size | 2503 |
| Insert Material | Carbide |
| Manufacturer Grade | CP500 |
| Cutting Width (mm) | 2.000 |
| Maximum Depth of Cut (mm) | 6.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 20.40 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.30 |
| Lead Angle | 0.000 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-Off |
| Series | X4 |
| Coating Process | PVD |
| Overall Length (mm) | 25.4400 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Ansi Code | X4GK2503030-0200RN-MC |
| Iso Code | X4GK2503030-0200RN-MC |
| Maximum Corner Radius (Decimal Inch) | 0.0120 |
| Manufacturers Catalog Number | X4GK2503030-0200RN-MC |
| External Relief Angle | 6 |
| Cut Condition | Stable |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Insert Width (mm) | 2.00 |
| Chip Breaker | MC |
| Insert Seat Size | 25 |
| Inscribed Circle (mm) | 19.00 |
| Insert Height (Decimal Inch) | 0.8030 |
| Full Radius | No |
| Coating Classification | PVD |
| Overall Width (Decimal Inch - 4 Decimals) | 2.0000 |
| Included Angle Degree | 90 |
| Coating/Finish | TiN; TiAlN |
| Maximum Hole Depth (mm) | 0.00 |
| Single Or Double End | Double |
| Groove Width (mm) | 2.00 |
| Insert Thickness | 20.40 |
| Minimum Hole Diameter (mm) | 0.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
